| Brand Name: | Henger |
| Model Number: | HSRB |
| MOQ: | 100M |
| Price: | USD267-300/M |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000M/Month |

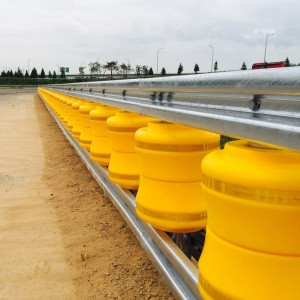

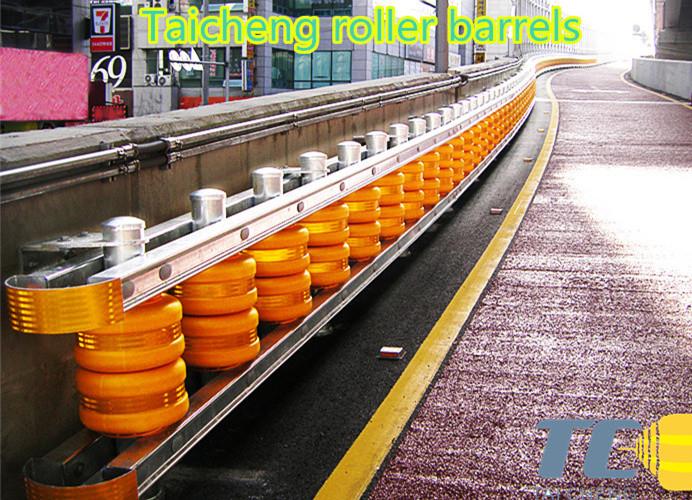

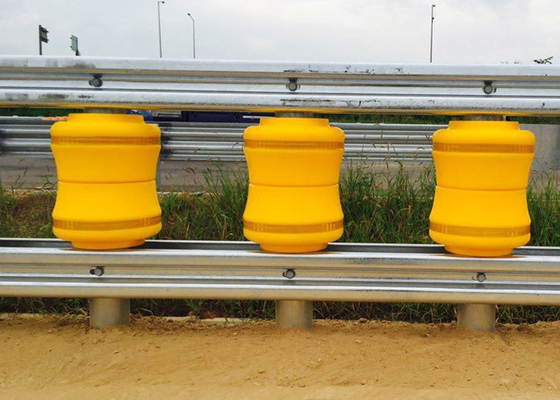

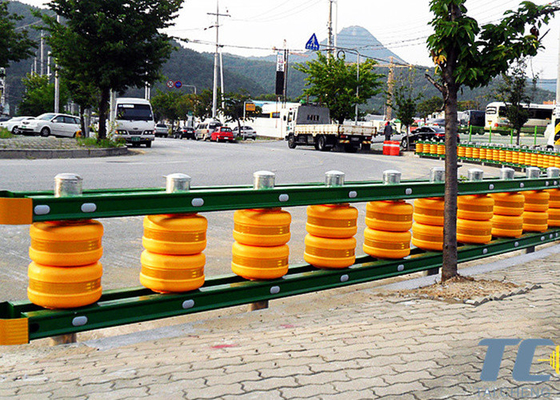

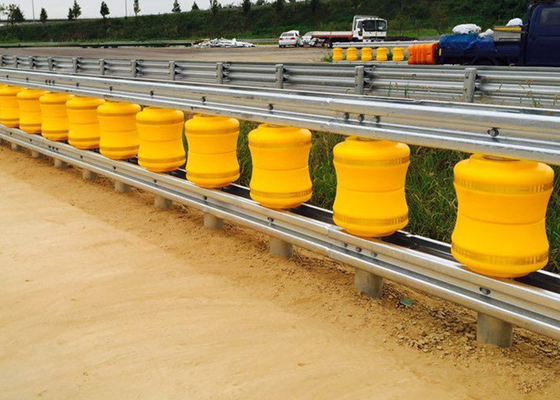

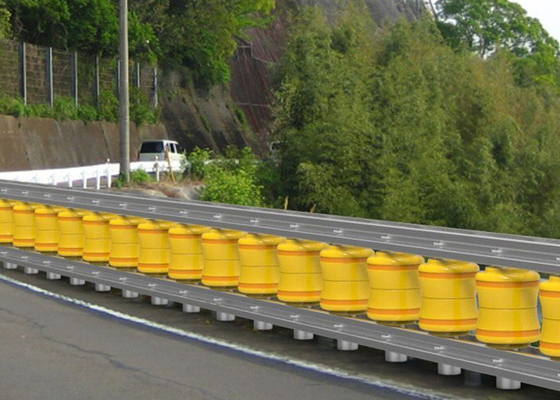

The Rolling Barrier Guardrail was built with maintenance as a primary concern. A modular design comprised of D-shaped steel rails, round steel-posts with EVA shock-absorbing barrels, and frame rail lockers means that after incidents, individual parts can be replaced without compromising the entire system thus reducing maintenance costs.
Improve roadside visibility – SRB rollers are striped with high-intensity reflective sheeting that increases driver awareness and reduces accidents. Optional LED guide lamps can be added for even more exceptional visibility.
Safely redirects vehicles – Shock absorbing rollers convert impact energy into rotational energy, creating a smooth redirection. Occupant impact test results show SRB is the safest in its class.
Soften vehicle impacts – With 100% recyclable components, SRB is made of steel and flame-retardant, eco-friendly ethylene vinyl acetate (EVA) plastic, which softens vehicle impacts and reduces vehicle damage.
Wear resistance is higher than 200% Wear resistance is higher than 200% to other anti-collision barrel materials in the market . Due to its unique production process and process, Taicheng Rotary Anti-collision Barrel has 3mm thick hard polyurethane protective layer in the outer layer of the barrel. Its tensile strength and bearing capacity are 2-3 times that of other anti-collision barrels in the market.
Application field:
The product can be widely used in highway curves.
Highway ramps and continuous downhill sections.
Midsection of curved belt.
Part of a cliff or high drop slope.
Bridge the dock.
Areas affected by crosswind.
Tunnel entrance.
And accident-prone roads.
Technical Parameters:
| No. | Name | Specifications(mm) | Material |
| 1 | Roller | 345*490/350*510(Customized) | Polyurethane |
| 2 | Post | 140*2000*4.5(Customized) | Q235 |
| 3 | PVC Tube | 160*500*6.5(Customized) | PVC |
| 4 | Beam | 100*80*4.0 | Q235 |
| 5 | Rolling Circle | 182×145×6.0 | Polymer Ethylene |
| 6 | End Socket | 1300×230×4.0 | Q235 |
| 7 | Post Cap | 145×145 | Rubber |
| 8 | Bolt | M18*120 | Q235 |
| M18*180 | Q235 | ||
| M18*80 | Q235 | ||
| 9 | Nut | M20 | Q235 |
| Item | Specifications |
| Apparent Density (KG/m³) | ≥125 |
| Tensile Strength(MPa) | ≥1.15 |
| Elongation(%) | ≥320 |
| Compression Permanent Distortion (%) | ≥38 |
| Resilience(%) | ≥72 |
| Chemical Composition | |||||||||||||||||
| C | Si | P | S | Mn | Ni | Cu | Cr | B | V | Mo | W | Al | Co | Pb | Se | Te | Bi |
| 0.18% | 0.001% | 0.022% | 0.013% | 0.38% | 0.002% | 0.001% | 0.002% | 0 | 0 | 0.001% | 0.001% | 0.002% | 0.001% | 0.001% | 0.001% | 0.02% | 0.03% |
