| Brand Name: | Henger |
| Model Number: | HSRB |
| MOQ: | 100M |
| Price: | USD267-300/M |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000M/Month |
Product specifications
Vertical pillar : 140×4.5×length
Horizontal rail : 100×80×4×length
Casing pipe : 165×480×8×length
EVA rotating barrel : 350 X 500
Circle of revolution : 182 x 145 x 8
Space : 700mm and 1000mm
Component details

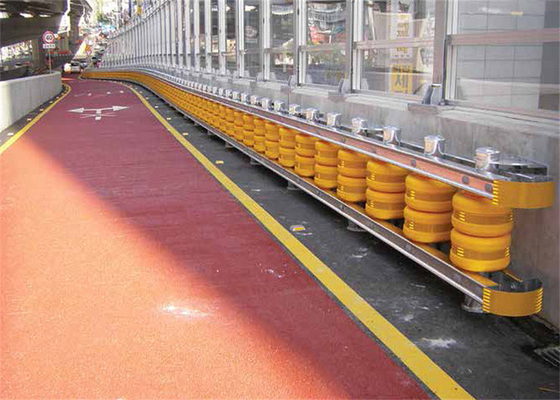

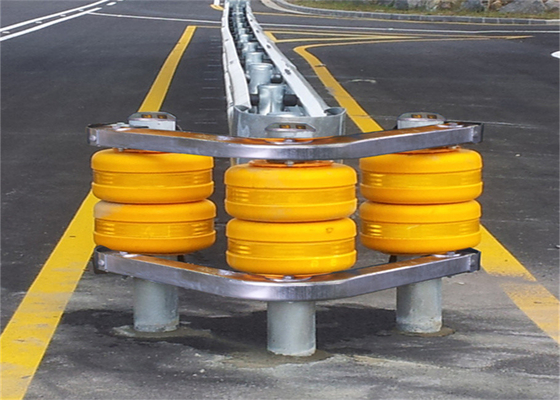

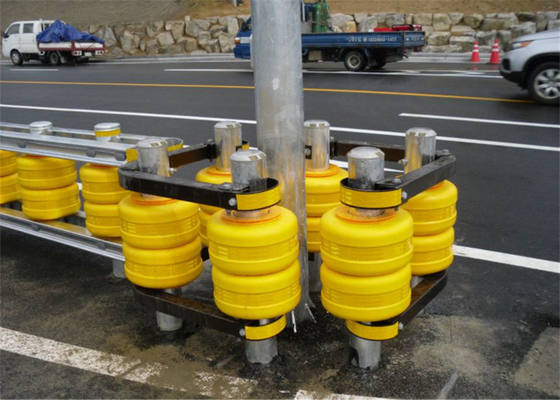

This guardrail consists of uprights, EVA rotating barrels, U-shaped beams and connectors. All steel components are treated with hot-dip galvanizing to prevent rusting.
The vertical pillars are separated by 1 meter or 0.7 meters, and two rotating barrels are installed on each vertical pillar.
Product features
This rotating barrel is made of EVA (ethylene-vinyl acetate copolymer) as the main material, added by more than 30 kinds of auxiliary materials such as PE (polyethylene) and related chemical additives, and was produced under a certain temperature and pressure. With high flexibility and resilience, and also with high temperature resistance, continuous working temperature between -30 °C and 70 °C.
Reflective strips are attached to the rotating barrel. When driving at night, through the illumination of head-lights, it can better reflect the outline of the route, play a better sight-inducing role for the vehicle, improving driving safely.
Applications

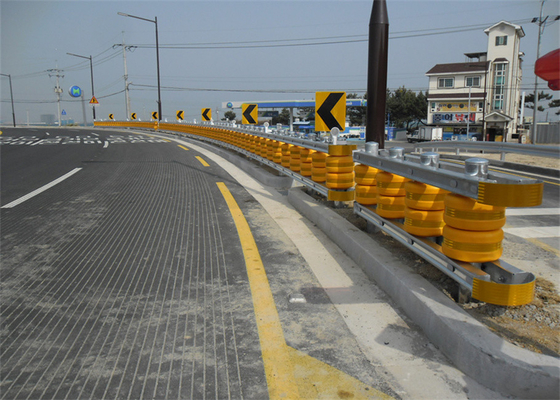

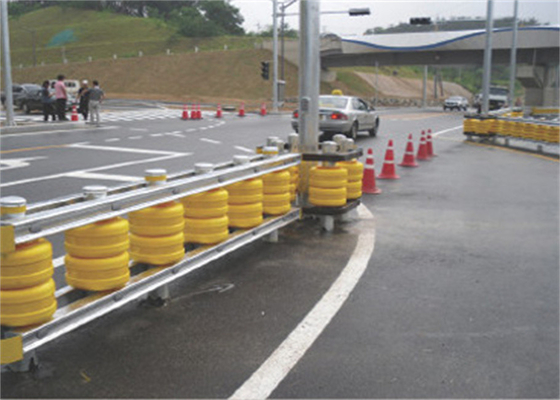

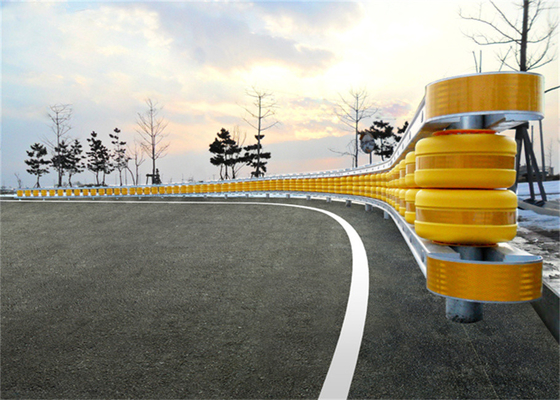

This product can be widely used in the curve sections of highway.
the ramps of highway and continuous downhill sections.
Fan-shaped middle section of curved belt
Cliff or high drop slope section
Bridge terminals
area affected by crosswind
Tunnel entrance
And road sections where accidents occur frequently.
Advantages:
Low cost
High flexibility to install and repair
Cable tension and post space can be adjusted.
Prevent vehicles from running off the road effectively
Absorb most sudden impact energy during collision
Good looking for the usage in open scenic spots
Anti-rust, anti-corrosion and anti-aging
Qingdao Taicheng focuses on the export business of transportation facilities and has rich experience in container packing and crating. The guardrail panels are packed with steel wire ropes, the columns are transported on pallets, and guardrail accessories such as gaskets are transported in ton bags. This assembly method ensures that the products arrive at the destination port and is convenient for loading and unloading.
1. The guardrail packaging adopts bundling method, which is convenient for loading and unloading. It also keeps the container balanced and facilitates transportation.
2. The guardrail columns are packaged in a tic-tac-toe bundling method, which is strong and easy for forklift loading and unloading.
3. Guardrail accessories are packed in large bags or simple wooden boxes for easy loading and unloading, and can be installed after arrival.
Technical Parameters:
| No. | Name | Specifications(mm) | Material |
| 1 | Roller | 345*490/350*510(Customized) | Polyurethane |
| 2 | Post | 140*2000*4.5(Customized) | Q235 |
| 3 | PVC Tube | 160*500*6.5(Customized) | PVC |
| 4 | Beam | 100*80*4.0 | Q235 |
| 5 | Rolling Circle | 182×145×6.0 | Polymer Ethylene |
| 6 | End Socket | 1300×230×4.0 | Q235 |
| 7 | Post Cap | 145×145 | Rubber |
| 8 | Bolt | M18*120 | Q235 |
| M18*180 | Q235 | ||
| M18*80 | Q235 | ||
| 9 | Nut | M20 | Q235 |
| Item | Specifications |
| Apparent Density (KG/m³) | ≥125 |
| Tensile Strength(MPa) | ≥1.15 |
| Elongation(%) | ≥320 |
| Compression Permanent Distortion (%) | ≥38 |
| Resilience(%) | ≥72 |
| Chemical Composition | |||||||||||||||||
| C | Si | P | S | Mn | Ni | Cu | Cr | B | V | Mo | W | Al | Co | Pb | Se | Te | Bi |
| 0.18% | 0.001% | 0.022% | 0.013% | 0.38% | 0.002% | 0.001% | 0.002% | 0 | 0 | 0.001% | 0.001% | 0.002% | 0.001% | 0.001% | 0.001% | 0.02% | 0.03% |
