Safety Rolling Crash Barrier,
Highway Rolling Crash Barrier,
Highway Roller Barrier Guardrails
The new road rotating guardrail is also called the "anti-collision bucket guardrail" or " new type highway roller barriers " . It mainly adopts the "one column and four beams " method . By strengthening the performance and installation method of the column and the fence, it effectively prevents the car from crossing the fence and driving out of the driving lane.

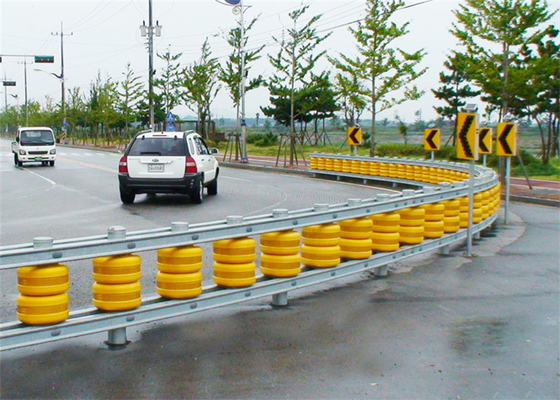

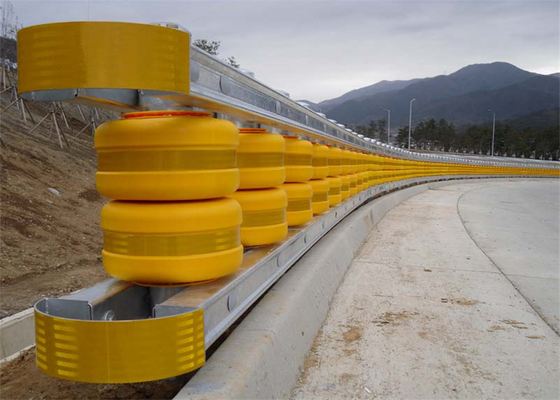

The roller anti-collision guardrail is composed of columns, rollers, U-shaped or W-shaped beams and connecting parts. All steel components are treated with hot galvanized anti-rust. The columns shall be spaced 1 m, 0.7 m or 0.5 m apart, and one roller or two rollers shall be installed on each column. The roller with EVA as the main material and related chemical additives and other 17 kinds of auxiliary materials, under a certain temperature and pressure, made of high flexibility and resilience, and high temperature resistance, continuous working temperature between -60°C and 70°C.
The rotating anti-collision guardrail combines the advantages of traditional guardrails and new impact-resistant energy-absorbing drums, and realizes the protection method of "one column and four columns". The rotating anti-collision guardrail improves the installation method by strengthening the performance of traditional columns and guardrails. The rotating bucket can rotate freely on the column. When an accident occurs, the free rotation of multiple groups of anti-collision rotating buckets can effectively decompose the impact force of the car, so that the impact energy perpendicular to the direction of the guardrail can be converted into rotational energy parallel to the direction of the anti-collision rotating bucket. , The combination of this rotational energy and the elastic energy of the rotating barrel can pull the accident vehicle to maintain the normal driving direction and speed, while avoiding the "head-to-head" situation of the vehicle and the traditional guardrail in previous traffic accidents, it can prevent the car from passing through the guardrail and driving out. Drive lanes, thereby effectively reducing the serious consequences of traffic accidents, and protecting the personal safety of drivers and passengers to a great extent.
1. Adopt high-quality original material.
Roller EVA material with elastic characteristics is used as raw material, which can slow down the lateral impact process of the out-of-control vehicle. Moreover, the rotating barrel can rotate around the column under a certain impact, driving the out-of-control vehicle to return to the correct driving direction.
2. High quality steel support.
Using Q235 steel, multiple thick steel fixed, durable, strong protection ability.
3. Strong of lower solid frame.
The round post could buried deep, structural strengthening, can effectively block the front or side impact.
The function of each part of the roller anti-collision guardrail
1. Column: It is driven into the roadbed and is the main force-bearing component.
2. Beam: It is used to connect the columns and fix the rotating barrel.
3. Rotary barrel: It is fixed between the upper and lower beams and can be rotated around the column. The main materials are EVA (ethylene-ester acid copolymer) and polyurethane.
4. Sleeve: It is installed on the inner wall of the rotating barrel and is a touch component with rotating function.
5. Ring: Installed between the rotating barrel and the beam to balance and promote rotation.
6. Connection frame: used for connection between beams.
7. U-shaped frame: connecting the beam and the column to fix the beam.
8. Pad buckle: Lined with the beam and connected to the U-shaped frame.
9. Hoop: connecting beams and columns, used to fix beams, suitable for specific types.
10. Reflective strips.It is a reflective film, which is pasted on the rotating barrel and plays an inductive role.

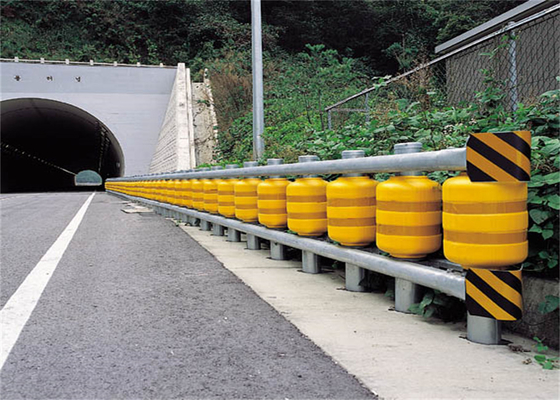

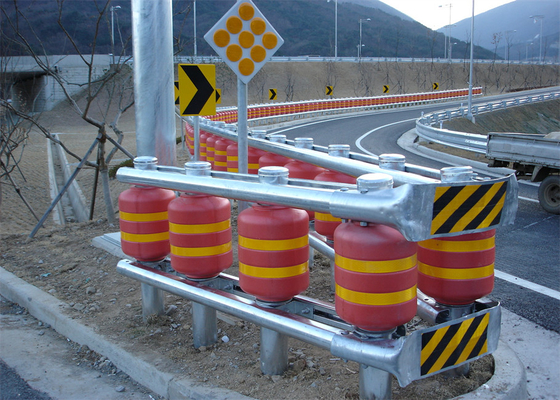

The appearance color of the rotating anti-collision barrel can be customized into various warning colors, such as yellow, orange, orange, red, green, etc. The high brightness reflection effect makes the anti-collision barrel maintain high recognition and warning degree in bad weather conditions such as night and rainy days, catch the driver's eye, attract the driver's attention, and reduce the accident rate. It is especially suitable for installation in accident-prone areas such as tunnel entrances, central isolation belts, rapid turning areas, complex intersections, etc. Because of its good anti-collision performance, it can also be used as various power facilities, parking lot columns, large shelf corners and other objects. defensive equipment.
Qingdao Taicheng Transportation Facilities Co., Ltd
The first manufacturer of exporting new type roller barriers in China
Qingdao Taicheng Transportation Facilities Co., Ltd. is a technological innovation enterprise invested by Henger Group. Its headquarters is located in Jinkou Industrial Park, Qingdao. Taicheng Transportation has an innovative scientific research team, advanced manufacturing technology, first-class production facilities, and perfect testing methods. , reliable product quality, enthusiastic after-sales service, devoted to the great cause of improving China's road safety.
The impact-resistant and energy-absorbing rotating guardrail independently developed and designed by Taicheng Transportation has broken the technological monopoly of Korean and American countries and filled the market gap of China's rotating guardrail. The product has more than 20 national patents, and has successfully passed the collision test of small cars (family cars), buses and large trucks in the highway test site of the Ministry of Communications, and the test results and collision data are at the international leading level.
The new series of rotating anti-collision barriers have been widely used in South Korea, Japan, the United States, the United Arab Emirates and other countries. The accident rate, economic loss rate and accident fatality rate of the installed road section have been reduced by more than 95%, which has greatly protected the lives of pedestrians. Property safety provides a reliable guarantee and strong shield for road safety. It is believed that in the near future, the new type of rotating anti-collision guardrail will be popularized on China's highways and accident-prone sections, introducing innovative protection design for China's road environment, bringing leap-forward protection effects for road safety, and becoming a life project for the benefit of future generations. .
The company will always adhere to the corporate tenet of "not forgetting the original intention, people-oriented, and technological innovation", to build a first-class transportation facility enterprise with international competitiveness, to provide the society with high-quality new rotating anti-collision guardrails, and to protect the road safety of the country and the world. convoy.
