Product Details:
Payment & Shipping Terms:
|
| Name: | Highway Safety Roller Barrier | Material: | EVA |
|---|---|---|---|
| MOQ: | 100M | Color: | Customized Color |
| Model: | Single/Double Roller | Spacing: | 700/1000mm |
| Certificate: | SB Grade Certificate | Surface Treatment: | Galvanized |
| High Light: | Anti Crash Eva Roller Guardrail,Highway Eva Material Roller Guardrail,Rotating Highway Eva Barrier |
||

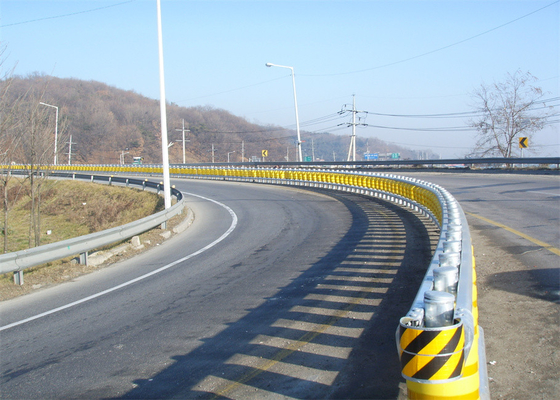

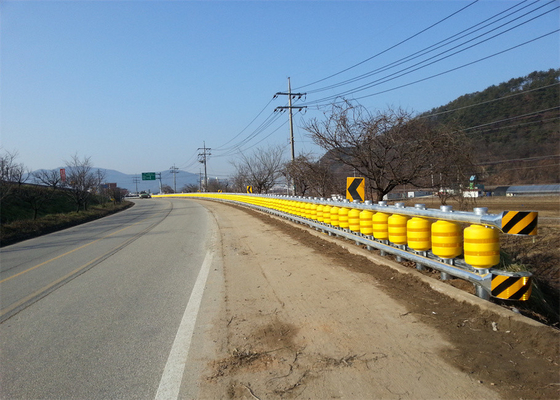

The Rolling Barrier Guardrail System is new generation guardrail which combines rotating barrels made from the energy-absorbing co-polymer Ethylene-vinyl acetate (EVA), with a proprietary steel guardrail, to create the world’s safest roadside and median barrier.
The Rolling Barrier Guardrail was built with maintenance as a primary concern. A modular design comprised of D-shaped steel rails, round steel-posts with EVA shock-absorbing barrels, and frame rail lockers means that after incidents, individual parts can be replaced without compromising the entire system thus reducing maintenance costs.
Advantages:
1. The rotating element of the Rolling Barrier Guardrail has highly visible reflective sheeting bands which provide safe reflective warning to the night time driver.
2. The Rolling Barrier Guardrail can be used on dangerous curved roads, severe radius exit and entrance ramps, bridge decks, entrances to tunnels as well as general safety barriers to potentially hazardous roadside facilities.
3. Symmetric design allow for installation on roadside and as median barrier guardgdrail to prevent serious injury and fatality.
4. Rolling Barrier Guardrail has passed the stringent requirements of the crash tests with superior re-direction and minimum deflection performance as compared to traditional road safety barrier products. Crash test results showed minimal to no damage to the Rolling Barrier Guardrail after impact which can be attributed to its energy-distributing design. Minimal damage combined with its modular component-based design will reduce overall maintenance costs.
Reflective strips can be pasted on the rotating barrel to warn drivers at night. When the driver drives to an area without lights or the lights are too dark, the reflective strip can refract the light, thereby reminding the driver to drive safely.
Technical Parameters:
| No. | Name | Specifications(mm) | Material |

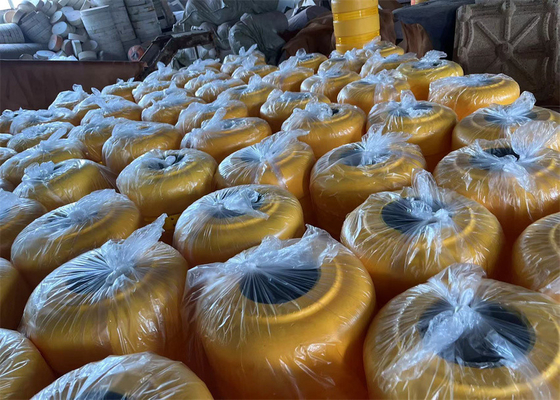

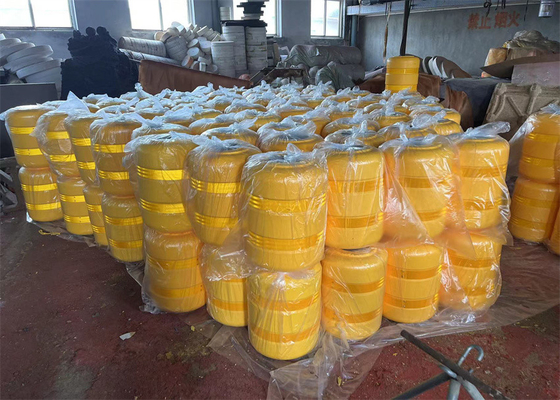

| 1 | Roller | 345*490/350*510(Customized) | Polyurethane |

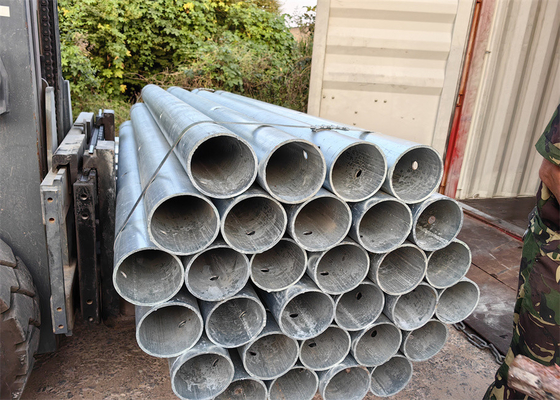

| 2 | Post | 140*2000*4.5(Customized) | Q235 |
| 3 | PVC Tube | 160*500*6.5(Customized) | PVC |
| 4 | Beam | 100*80*4.0 | Q235 |
| 5 | Rolling Circle | 182×145×6.0 | Polymer Ethylene |
| 6 | End Socket | 1300×230×4.0 | Q235 |
| 7 | Post Cap | 145×145 | Rubber |
| 8 | Bolt | M18*120 | Q235 |
| M18*180 | Q235 | ||
| M18*80 | Q235 | ||
| 9 | Nut | M20 | Q235 |
| Item | Specifications |
| Apparent Density (KG/m³) | ≥125 |
| Tensile Strength(MPa) | ≥1.15 |
| Elongation(%) | ≥320 |
| Compression Permanent Distortion (%) | ≥38 |
| Resilience(%) | ≥72 |
| Chemical Composition | |||||||||||||||||
| C | Si | P | S | Mn | Ni | Cu | Cr | B | V | Mo | W | Al | Co | Pb | Se | Te | Bi |
| 0.18% | 0.001% | 0.022% | 0.013% | 0.38% | 0.002% | 0.001% | 0.002% | 0 | 0 | 0.001% | 0.001% | 0.002% | 0.001% | 0.001% | 0.001% | 0.02% | 0.03% |
