EVA Polyurethane Road Safety Anti Collision Bucket / Anti Collision Pad

EVA Polyurethane Road Safety Anti Collision Bucket / Anti Collision Pad

Brand Name: TC
Model Number: Customizable
MOQ: 100m
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 15KM/month
Detail Information
Place of Origin:
Qingdao
Certification:
SB test report
Material:
Q235 Q345,EVA And PU Foam (Polyurethane)
Color:
Yellow,Orange
Application:
Collision Avoidance; Highway Protect; Road Traffice Safty,Anticollision,bridge
Type:
Double Buckets Or Single Bucket
Feature:
High Intensity,Durable,anti-corrosion
Surface Treatment:
Hot Dipped Galvanized
Packing:
Standard Export Package
Packaging Details:
Standard Export package
Supply Ability:
15KM/month
Highlight:

Road Safety Anti Collision Bucket

,

EVA Polyurethane Anti Collision Bucket

,

Road Safety Anti Collision Pad

Product Description

EVA Polyurethane Road Safety Anti-Collision Bucket/Anti-Collision Pad


Product color: The color is bright and bright, and can be sprayed into various colors according to needs, such as yellow, orange, red and blue.

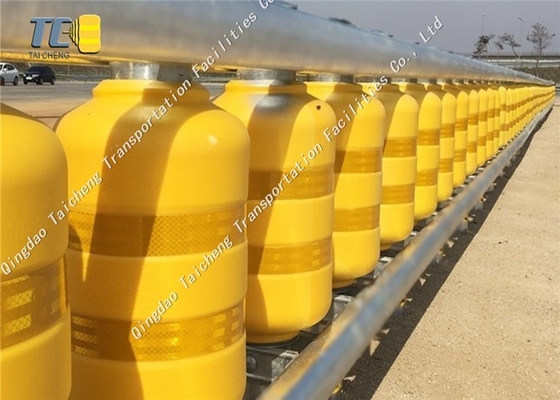

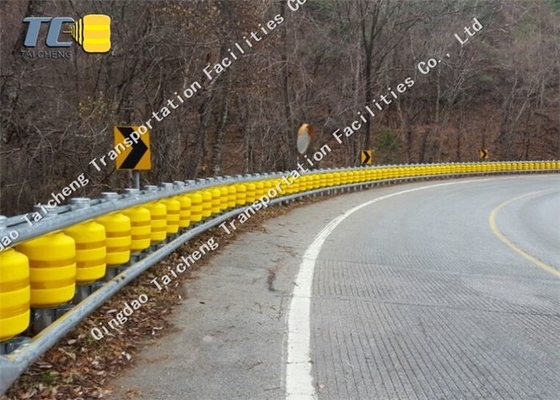

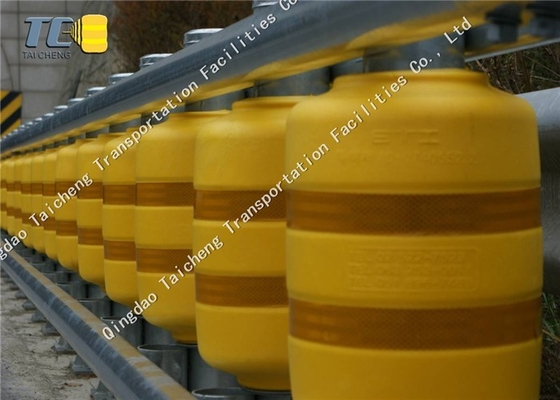

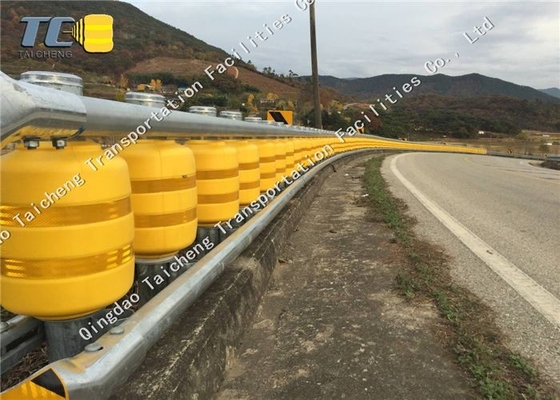

Scope of use: Anti-collision barrels are mainly placed on highways and urban roads where collisions between cars and fixed facilities in the road are likely to occur, the central isolation of the road, intersections, highway toll station square guidance isolation, road turns, roads and elevated roads Import and export, under the wire rope safety fence on the side of the road, etc.


EVA Polyurethane Road Safety Anti Collision Bucket / Anti Collision Pad 0EVA Polyurethane Road Safety Anti Collision Bucket / Anti Collision Pad 1

Product Introduction





name highway guardrail safety roller barrier use road safety
size 4130*310*81*2.75 standard American standard
material Q345B or Q235B feature anti-corrision
certificate ISO SGS BV CE treatment of surface hot dip galvanized



Product Usage:

1. The anti-collision pad under the wire rope safety fence on the side of the road is used to protect the safety of people and reduce the impact in the event of a traffic accident.

2. The anti-collision barrel can play the role of isolation warning and anti-collision because of its bright color.

3. It can buffer the accidental collision with the vehicle, effectively reduce the impact force, and greatly reduce the damage of the vehicle and people.



EVA Polyurethane Road Safety Anti Collision Bucket / Anti Collision Pad 2EVA Polyurethane Road Safety Anti Collision Bucket / Anti Collision Pad 3

Product Parameters

No. Name Specifications(mm) Material
1 Roller 345*490/350*510(Customized) Polyurethane
2 Post 140*2000*4.5(Customized) Q235
3 PVC Tube 160*500*6.5(Customized) PVC
4 Beam 100*80*4.0 Q235
5 Rolling Circle 182×145×6.0 Polymer Ethylene
6 End Socket 1300×230×4.0 Q235
7 Post Cap 145×145 Rubber
8 Bolt M18*120 Q235
  M18*180 Q235
  M18*80 Q235
9 Nut M20 Q235



Item Specifications
Apparent Density (KG/m³) ≥125
Tensile Strength(MPa) ≥1.15
Elongation(%) ≥320
Compression Permanent Distortion (%) ≥38
Resilience(%) ≥72


EVA Polyurethane Road Safety Anti Collision Bucket / Anti Collision Pad 4EVA Polyurethane Road Safety Anti Collision Bucket / Anti Collision Pad 5EVA Polyurethane Road Safety Anti Collision Bucket / Anti Collision Pad 6



Features:



1. The wear resistance is 3-5 times that of natural rubber.

2. The oil resistance is 4 times better than that of NBR.

3. High mechanical strength, its tear strength, tear strength and load bearing capacity are many times higher than ordinary rubber.

4. Excellent acid and alkali resistance, low temperature resistance, radiation resistance and solvent resistance

5. High bonding strength with metal skeleton board.

6. The service life is relatively high, which can last for decades, and the cost performance is very high.
