High Speed Highway Road Rolling Guardrail Barrier Anti Impact EVA Foam Material

China Qingdao TaiCheng transportation facilities Co.,Ltd. certification
China Qingdao TaiCheng transportation facilities Co.,Ltd. certification
I am very grateful to the staff of Taicheng for their cooperation. Our guardrail installation is very beautiful, and my customers like it too. Next time I will buy back.

—— Le Thao

I'm Online Chat Now

High Speed Highway Road Rolling Guardrail Barrier Anti Impact EVA Foam Material

High Speed Highway Road Rolling Guardrail Barrier Anti Impact EVA Foam Material
High Speed Highway Road Rolling Guardrail Barrier Anti Impact EVA Foam Material High Speed Highway Road Rolling Guardrail Barrier Anti Impact EVA Foam Material High Speed Highway Road Rolling Guardrail Barrier Anti Impact EVA Foam Material High Speed Highway Road Rolling Guardrail Barrier Anti Impact EVA Foam Material High Speed Highway Road Rolling Guardrail Barrier Anti Impact EVA Foam Material

Large Image :  High Speed Highway Road Rolling Guardrail Barrier Anti Impact EVA Foam Material

Product Details:
Place of Origin: CHINA
Brand Name: TC
Certification: ISO
Model Number: 0015
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Payment Terms: W Beam Rolling Guardrail Barrier Accident Car Transportation Facilities Guardrail
Supply Ability: 100 Meters Per 25 Days Or More Less Time
Detailed Product Description
Brand Name: Taicheng Product Name:: Safety Roller Barrier
Material: PU/EVA+Galvanized Beam Usage: Road Traffic Safety
Size: 1.2 M*1 M* 1.2 M Or Custom Color: Yellow,Orange
High Light:

High Speed Highway Rolling Guardrails

,

Anti Impact Road Rolling Guardrail

,

EVA Foam Road Rolling Guardrail

Highway rolling guardrail high-speed rotating guardrails road new anti-impact roller guardrails EVA foam roller barrels

The rotating anti-collision guardrail combines the advantages of traditional guardrails and new impact-resistant energy-absorbing drums, and realizes the protection method of "one column and four columns". The rotating anti-collision guardrail improves the installation method by strengthening the performance of traditional columns and guardrails. The rotating bucket can rotate freely on the column. When an accident occurs, the free rotation of multiple groups of anti-collision rotating buckets can effectively decompose the impact force of the car, so that the impact energy perpendicular to the direction of the guardrail can be converted into rotational energy parallel to the direction of the anti-collision rotating bucket. , The combination of this rotational energy and the elastic energy of the rotating barrel can pull the accident vehicle to maintain the normal driving direction and speed, while avoiding the "head-to-head" situation of the vehicle and the traditional guardrail in previous traffic accidents, it can prevent the car from passing through the guardrail and driving out. Drive lanes, thereby effectively reducing the serious consequences of traffic accidents, and protecting the personal safety of drivers and passengers to a great extent.

High Speed Highway Road Rolling Guardrail Barrier Anti Impact EVA Foam Material 0High Speed Highway Road Rolling Guardrail Barrier Anti Impact EVA Foam Material 1High Speed Highway Road Rolling Guardrail Barrier Anti Impact EVA Foam Material 2



1. Adopt high-quality original material

Roller EVA material with elastic characteristics is used as raw material, which can slow down the lateral impact process of the out-of-control vehicle. Moreover, the rotating barrel can rotate around the column under a certain impact, driving the out-of-control vehicle to return to the correct driving direction.



2. High quality steel support
Using Q235 steel, multiple thick steel fixed, durable, strong protection ability.



3. Strong of lower solid frame
The round post could buried deep, structural strengthening, can effectively block the front or side impact.





High Speed Highway Road Rolling Guardrail Barrier Anti Impact EVA Foam Material 3

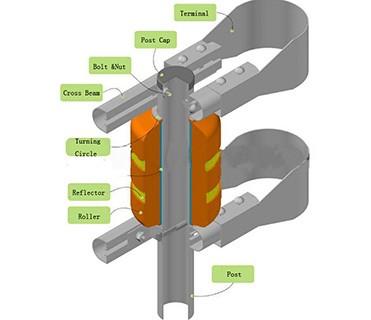

Products specification
Roller (royalty barrel)
H240xφ350mm,H270xφ350
Post
φ140x2200x4.5mm
Cross beam
100x80x4.0mm
Connecting rack
430x84x70x4.0mm
U shape frame
380x70x6.0mm
Turning circle
φ182xφ145x2.0mm
Square buckle
46x64x4.0mm
Terminal
1300x230x2.0mm
Bolts&Nuts
M20x60/120/140mm
Post spacing
700 mm or 1000 mm as request drawing
Material
EVA/Polyurethane for barrel,and Q235/Q345 for guardrail
Operating temperature
-60℃~70℃(-76℉~158℉)
Anti-corrision coefficien
3 times more than the ordinary guardrail
Crash test
the test result readh the SB.SBm-classic fence corrision level
Other specials

Port of Loading
Qingdao, Shandong
Payment
30% deposit, 70% balance by T/T,L/C,Trade Assurance
Capacity
5000 tons for guardrail,10000 pcs barrels
Packing
Opp bag+woven bag+carton+container
Delivery
5-7 working days
Price term
EXW,FOB,CIF



The appearance color of the rotating anti-collision barrel can be customized into various warning colors, such as yellow, orange, orange, red, green, etc. The high brightness reflection effect makes the anti-collision barrel maintain high recognition and warning degree in bad weather conditions such as night and rainy days, catch the driver's eye, attract the driver's attention, and reduce the accident rate. It is especially suitable for installation in accident-prone areas such as tunnel entrances, central isolation belts, rapid turning areas, and complex intersections; because of its good anti-collision performance, it can also be used as various power facilities, parking lot columns, large shelf corners and other objects. defensive equipment



Scope of application: It is especially suitable for installation and application in accident-prone areas such as tunnel entrances, central isolation belts, sharp turning areas, and complex intersections. It is worth mentioning that the rotating barrel also has a strong resilience, even if it is severely impacted, it can immediately return to its original state.
