Product Details:
Payment & Shipping Terms:
|
| Type: | Noise Barrier | Application: | Temporary Construction Site |
|---|---|---|---|
| Color: | Green,silvery | Material: | Aluminium Sheet, Steel Sheet, Stainless Steel, 100% Virgin PMMA By Lucite And MRC, Etc |
| Product Name: | Noise Barrier, Wholesale China Manufacturer Highway Noise Acoustic Sound Barrier, Sound Proof Galvanized Sheet And PC Highway Noise Barrier, Reduction Temporary Sound Barrier, Factory Price Mass Loaded Vinyl Sound Highway Noise Barrier | Panel Style: | Plain, Curves, Weaves, Arc-shaped, Punching Sheet |
| Inner Material: | Glass Wool, Sound Absorpiton+Insulation Material | Surface Treatment: | Galvanized, Galvanized+Powder Coating, Galvanized + Plastic Spraying, Powder Coating, Powder Coated Railway Noise Barrier |
| High Light: | Highway Louver Type Noise Barrier,3m Aluminum Highway Noise Barrier,Glass Wool Highway Sound Barrier |
||
Common specifications of sound barriers:
Screen size: 500mm * 2000mm, 500mm * 3000mm
Thickness of galvanized sheet for single panel of screen: 0.6mm, 0.7mm, 0.8mm, 1.0mm, 1.2mm
Total thickness of screen body: 80mm, 100mm,
Column: H-shaped steel 100mm * 100mm * 6 * 8mm, 125mm * 125mm * 7 * 10mm
Height: 3m, 3.5m, 4m, 4.5m, 5m, 5.5m, 6m
Style: Upright with angled upper part
Color: dark gray, light gray
Surface treatment: galvanized+sprayed plastic
Stability: increase slant support
The main components of the sound barrier are:
Foundations, columns, screens, fasteners, seals, and some even include top structures.
Sound barrier screen: galvanized sheet, back plate, keel, Glass wool, DuPont film, and the punching rate of the front is more than 25%; Sound barrier column: H-shaped steel, flange chassis, slant support, inner rib plate, outer rib plate;
Sound barriers are mainly used for sound insulation and noise reduction of highways, highways, elevated composite roads, and other noise sources. Divided into pure sound insulation reflective sound barriers,
A composite sound barrier that combines sound absorption and insulation, the latter being a more effective sound insulation method. Refers to reducing the impact of driving noise on nearby residents
A wall like structure set on the side of railways and highways. Acoustic walls are also known as sound barriers. Insert a facility between the sound source and receiver to make the sound
| Main materials and specifications | |||
| Name | Details | Description | |
|
Noise barrier |
Noise barrier |
Metal | galvanized plate, aluminum alloy plate, color steel plate, pinhole composite aluminum plate, foam aluminum plate, aluminum fiber, etc |
| Transparent material | laminated glass, PC board, acrylic board | ||
| Hole type | louver hole: commonly used aperture 20 * 137/20 * 182 | ||
| Micropores: commonly used with 3 holes and 3 pitches, 5 holes and 2 pitches, and 2 holes and 4 pitches | |||
| Opening rate | not less than 25% | ||
| Common sizes | 500 * 2000 * 80mm, 500 * 2000 * 100mm, 500 * 2500 * 80 (100) mm, 500 * 2000 * 120mm, etc | ||
| Surface | The surface concave and convex grooves can be customized according to the drawings or customer requirements | ||
| Surface treatment | electrostatic powder spraying, fluorocarbon spraying | ||
| Color | green 6029, blue 5017, gray 7042, white 9010, etc. The colors can be selected according to the national standard color card | ||
|
H-shaped steel column |
material | Q235B | |
| Commonly used specifications | 100*100*6*8/125*125*65*9/150*150*7*10/175*175**75*11mm | ||
| ommonly used height | 2m-6m,up to12m | ||
| Flange plate | |||
| Lonng hole:22*30,24*30,26*40,28*40,circular hole:22,24,26,28,30,35 | |||
| Surface treatment | hot dip galvanizing - electrostatic powder spraying, fluorocarbon spraying | ||
| Color | green 6029, blue 5017, gray 7042, white 9010, etc. The colors can be selected according to the national standard color card | ||
| Built in sound absorbing material | ultra-fine centrifugal Glass wool board | ensity 32kgm, density 48kgm *, etc | |
| Glass wool outer package | DuPont ET film | thickness 16 microns, waterproof, sound-absorbing, anti-aging | |
| Applicable scope | Applicable to noise control of highways, overpasses, railways, residential areas, factory areas, workshop equipment, etc | ||

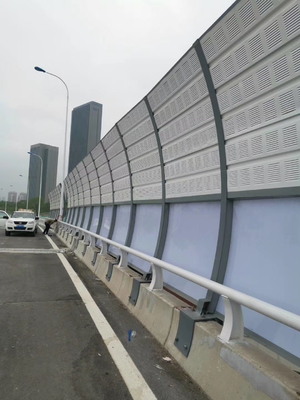

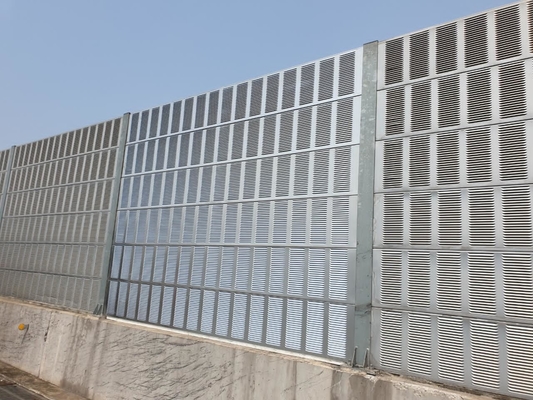

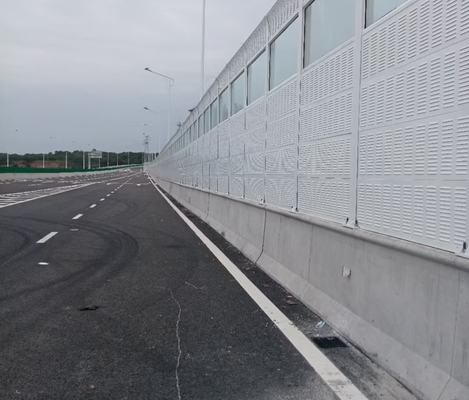

Louver hole noise barrier
Microporous noise barrier
Loading of noise barrier
Features:
High sound insulation: The average sound insulation is 37dB.
Number of sound absorption systems: high sound absorption coefficient 0.95
Weathering durability: The product has water resistance, heat resistance, UV resistance, and will not decrease performance or quality abnormalities due to changes in rainwater temperature.
Aesthetics: Multiple colors and shapes can be selected for combination, coordinating with the surrounding environment to form a beautiful scenery.
Economy: prefabricated construction can improve work efficiency, shorten construction time, and save construction costs.
Convenient: Parallel installation with other products, easy to maintain, and easy to update.
Safety: Both ends of the sound-absorbing board can be connected and fixed with steel wire ropes to prevent secondary damage and damage to personnel and property.
Lightweight: The large arc sound barrier product has the characteristic of light weight, with a mass of less than 25 kilograms per square meter, which can reduce the load-bearing capacity of elevated light rail and elevated roads, and can reduce structural costs.
Fire prevention: ultra-fine Glass wool is used. Because of its high melting point and non combustible, it fully meets the requirements of environmental protection and fire prevention specifications, and its fire protection rating reaches Grade A.
