| Type: | Noise Barrier | Application: | Temporary Construction Site |
|---|---|---|---|
| Color: | Green,silvery | Material: | Aluminium Sheet, Steel Sheet, Stainless Steel, 100% Virgin PMMA By Lucite And MRC, Etc |
| Product Name: | Noise Barrier, Wholesale China Manufacturer Highway Noise Acoustic Sound Barrier, Sound Proof Galvanized Sheet And PC Highway Noise Barrier, Reduction Temporary Sound Barrier, Factory Price Mass Loaded Vinyl Sound Highway Noise Barrier | Panel Style: | Plain, Curves, Weaves, Arc-shaped, Punching Sheet |
| Inner Material: | Glass Wool, Sound Absorpiton+Insulation Material | Surface Treatment: | Galvanized, Galvanized+Powder Coating, Galvanized + Plastic Spraying, Powder Coating, Powder Coated Railway Noise Barrier |
| High Light: | Louver Type Highway Noise Barrier,Glass Wool Highway Noise Barrier,Galvanized Highway Sound Barrier |
||
Qingdao Taicheng Transportation Facilities Co., Ltd, subsidiary of Qingdao Henger Group, is a technology-innovative company, based in Jinkou Industry of Qingdao City. Taicheng is devoting to improve the world road safety cause by creative R&D team, advanced production technique, high class manufacturing machines, complete testing method, reliable product quality and enthusiastic service.
Sound barrier
Adopting anti rust device, anti peeling paint immersion molding, durable and long-lasting, without peeling paint. Select high-quality cold drawn low-carbon steel wire. Strong anti-corrosion and weather resistance, stable performance, and long service life. Installation is not limited by terrain fluctuations, especially for mountainous, hilly, and multi curved areas, with strong adaptability
Excellent performance
The surface is treated with a special process to form a protective film that is not easily damaged, smooth and flat, not easy to rust, easy to clean, and does not require maintenance.
Corrosion resistance
The surface is specially treated, so it can be used with peace of mind in cities with air pollution or coastal areas corroded by sea salt, solving your maintenance worries.
Aesthetics
The streamlined appearance and soft tones can coordinate the surrounding landscape, blend with modern urban space and natural environment, allowing you to leisurely travel between them
Sound barriers are mainly used for sound insulation and noise reduction of highways, highways, elevated composite roads, and other noise sources. Divided into pure sound insulation reflective sound barriers,
A composite sound barrier that combines sound absorption and insulation, the latter being a more effective sound insulation method. Refers to reducing the impact of driving noise on nearby residents
A wall like structure set on the side of railways and highways. Acoustic walls are also known as sound barriers. Insert a facility between the sound source and receiver to make the sound
Wave propagation has a significant additional attenuation, which weakens the noise impact within a certain area where the receiver is located. Such facilities are called sound barriers.
It is divided into traffic noise barriers, equipment noise attenuation noise barriers, industrial boundary noise barriers, and the most commonly used types of noise barriers on highways and highways
Many places.
| Main materials and specifications | |||
| Name | Details | Description | |
|
Noise barrier |
Noise barrier |
Metal | galvanized plate, aluminum alloy plate, color steel plate, pinhole composite aluminum plate, foam aluminum plate, aluminum fiber, etc |
| Transparent material | laminated glass, PC board, acrylic board | ||
| Hole type | louver hole: commonly used aperture 20 * 137/20 * 182 | ||
| Micropores: commonly used with 3 holes and 3 pitches, 5 holes and 2 pitches, and 2 holes and 4 pitches | |||
| Opening rate | not less than 25% | ||
| Common sizes | 500 * 2000 * 80mm, 500 * 2000 * 100mm, 500 * 2500 * 80 (100) mm, 500 * 2000 * 120mm, etc | ||
| Surface | The surface concave and convex grooves can be customized according to the drawings or customer requirements | ||
| Surface treatment | electrostatic powder spraying, fluorocarbon spraying | ||
| Color | green 6029, blue 5017, gray 7042, white 9010, etc. The colors can be selected according to the national standard color card | ||
|
H-shaped steel column |
material | Q235B | |
| Commonly used specifications | 100*100*6*8/125*125*65*9/150*150*7*10/175*175**75*11mm | ||
| ommonly used height | 2m-6m,up to12m | ||
| Flange plate | |||
| Lonng hole:22*30,24*30,26*40,28*40,circular hole:22,24,26,28,30,35 | |||
| Surface treatment | hot dip galvanizing - electrostatic powder spraying, fluorocarbon spraying | ||
| Color | green 6029, blue 5017, gray 7042, white 9010, etc. The colors can be selected according to the national standard color card | ||
| Built in sound absorbing material | ultra-fine centrifugal Glass wool board | ensity 32kgm, density 48kgm *, etc | |
| Glass wool outer package | DuPont ET film | thickness 16 microns, waterproof, sound-absorbing, anti-aging | |
| Applicable scope | Applicable to noise control of highways, overpasses, railways, residential areas, factory areas, workshop equipment, etc | ||

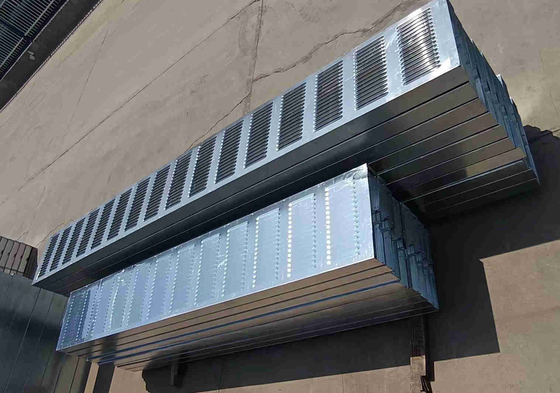

Louver hole noise barrier
Microporous noise barrier
Loading of noise barrier

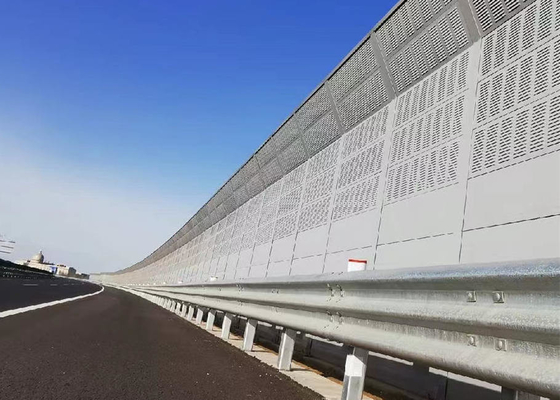

Highway soundproofing walls are also known as highway sound barriers. The support system of the highway soundproof wall adopts H-shaped steel columns, and the spacing between the columns of the soundproof wall on highways in the province is generally 1500mm-2500mm. The Expansion joint shall be fixed with self tapping screw at one side during installation.
