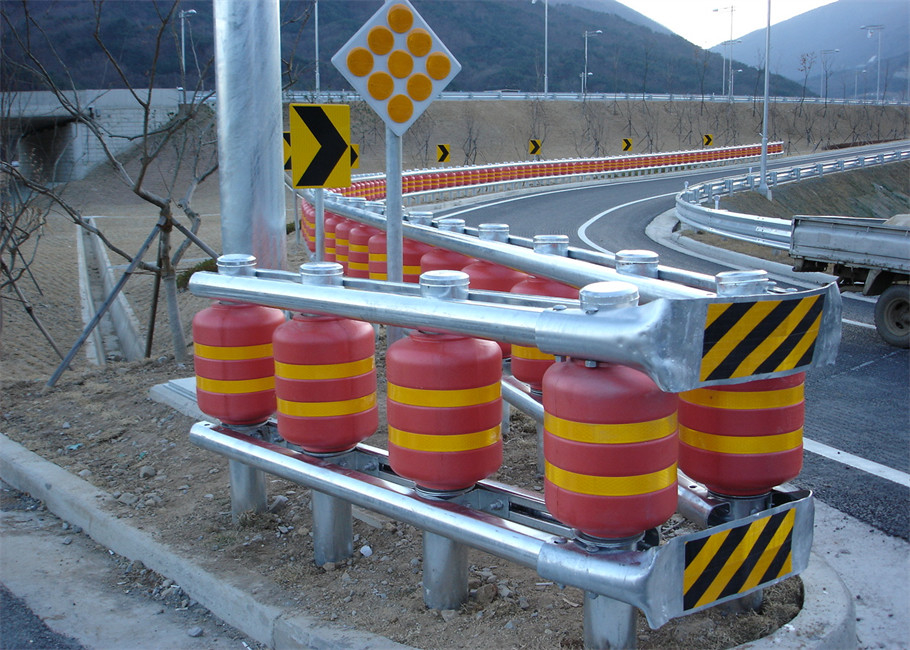

Advanced EVA Foam Board Material Highway Rotating Guardrail

Advanced EVA Foam Board Material Highway Rotating Guardrail
Advanced EVA Foam Board Material Highway Rotating Guardrail
video play

Large Image :  Advanced EVA Foam Board Material Highway Rotating Guardrail

Product Details:
Place of Origin: China
Brand Name: Taicheng
Certification: SB test report
Model Number: B01
Payment & Shipping Terms:
Minimum Order Quantity: 50 meters
Price: USD 280/meter
Packaging Details: Standard Export package
Delivery Time: 15 days
Payment Terms: T/T
Supply Ability: 15KM/month
Detailed Product Description
Material: EVA Eco Material,Polyurethane,SS Name: Guardrail, Highway Guardrail
Application: Highway,tunnel Brand: Taicheng
Color: Orange,yellow Customized: Available
Payment: TT Feature: High Intensity, Durable, Corrosion Resistant, Anti-corrosion
Size: D350*H500mm(Single) Packing: Standard Export Package
High Light:

EVA Foam Rotating Guardrail

,

SS Highway Rotating Guardrail

,

EVA Foam Board Rotating Guardrail

Advanced EVA Foam Board Material, Highway Rotating Guardrail

Roller Barrier is one of the important products of Qingdao Taicheng,its so popular because it has the following advantages:

1. Energy-absorption roller barrier system:When the high-speed car hits the rotating energy absorption barrel installed on the column,

the rotating energy absorption barrel can dilute most of the energy generated by the collision, so that the car is still running on the original road,

greatly guaranteeing the life safety of the driver and passengers.

2. Made by eco and innovative material:The roller barrels are made by innovative material which is wear resistance/energy-absorption/

flame resistance/high temperature resistance/aging resistance etc.

3. Customized available:We are professional manufacturer in roller guardrail,we will make them according to your demand.Our standard spec:

0.66m and 1m distance of column space,we provide single barrel and double small barrels for reference as well.

4. Easy to install:You will get all the accessories necessary with the roller barriers,we provide remote instruction .



Advanced EVA Foam Board Material Highway Rotating Guardrail 0





Applications of the Safety Roller Barriers



Advanced EVA Foam Board Material Highway Rotating Guardrail 1Advanced EVA Foam Board Material Highway Rotating Guardrail 2

Concrete barriers and conventional metal guardrail system are effective, but cause major damage to the impacting vehicle and the guardrail itself. Now a new type barrier system called energy-absorption roller barrier system, invented by Qingdao Taicheng Transportation Facilities Co., Ltd that specializes in highway safe guardrail systems for years in China, rises in reponse to bringing innovation technology to road safety, reducing death rate in traffic accident higher than 90% compared to traditional guardrails.
Advanced EVA Foam Board Material Highway Rotating Guardrail 3

On the other hand, the new anti-collision bucket guardrail has a built-in anti-impact energy-absorbing rotary anti-collision barrel, and the flexible barrel with anti-collision and energy absorption is mounted on the column, so that the rotating barrel can rotate freely on the column. The free rotation of the sets of anti-collision rotating rollers effectively decomposes the impact force of the car when the accident occurs, so that the impact energy perpendicular to the direction of the guardrail is converted into rotational energy parallel to the direction . The rotation energy can be combined with the elastic energy of the rotating barriers itself to keep the accident vehicle to maintain the normal traveling direction and speed. And it effectively mitigate the serious consequences of traffic accidents and greatly protect the personal safety of the passengers.



Advanced EVA Foam Board Material Highway Rotating Guardrail 4
Advanced EVA Foam Board Material Highway Rotating Guardrail 5



Structure of Qingdao Taicheng Safety Roller

installed on the column freely rotating in dangerous roads to ensure the safety of personnel EVA foam filled rollerinstalled on the column freely rotating in dangerous roads to ensure the safety of personnel EVA foam filled roller







Working principle of rotating guardrail

Project skills Requirement











Flat test

When the vertical direction is pressurized until the outer diameter deformation amount is 40% of the original outer diameter, the load is immediately released, and the sample is not broken or delaminated.





Drop hammer impact test

At a temperature of 0 ° C and a height of 1 m, the hammer was impacted 10 times with a 1 kg weight, and no cracking occurred for more than 9 times.



Install

installed on the column freely rotating in dangerous roads to ensure the safety of personnel EVA foam filled rollerinstalled on the column freely rotating in dangerous roads to ensure the safety of personnel EVA foam filled roller

installed on the column freely rotating in dangerous roads to ensure the safety of personnel EVA foam filled rollerinstalled on the column freely rotating in dangerous roads to ensure the safety of personnel EVA foam filled roller



Production Capacity

For the new rotating bucket guardrail, our capacity is 12-15km per month , which can meet the requirements of all urgent orders

Shipping Details

No. Product Specifications

40*HQ Container



Shipping Capacity

1.

1000 mm Column Space



Barriers size : 350*500 MM

280 Meters
2.

700 mm Column Space



Barriers size : 350*500 MM

240 Meters





Package&Delivery

Advanced EVA Foam Board Material Highway Rotating Guardrail 12Advanced EVA Foam Board Material Highway Rotating Guardrail 13

Advanced EVA Foam Board Material Highway Rotating Guardrail 14Advanced EVA Foam Board Material Highway Rotating Guardrail 15



Production Qualification And Test Report
Advanced EVA Foam Board Material Highway Rotating Guardrail 16

Product Components And Specifications
The rotary anti-collision guardrail is composed of rotating barrel, beam, column, reflective strip, casing, rotating coil and connecting piece.he exploded view is as follows:

Advanced EVA Foam Board Material Highway Rotating Guardrail 17

Structure of Qingdao Taicheng Safety Roller
installed on the column freely rotating in dangerous roads to ensure the safety of personnel EVA foam filled roller
installed on the column freely rotating in dangerous roads to ensure the safety of personnel EVA foam filled roller

installed on the column freely rotating in dangerous roads to ensure the safety of personnel EVA foam filled roller

Rotary anti-collision guardrail constitutes the outline - the deviation of the outer dimensions of the rotating anti-collision guardrail member is allowed 5%

d 151+2 -2
h1 110+2 -2
h2 50+1 -1
h3 80+2 -2





Production Capacity
For the new rotating bucket guardrail, our capacity is 12-15km per month , which can meet the requirements of all urgent orders.

Shipping Details


No. Product Specifications

40*HQ Container


Shipping Capacity

1.

1000 mm Column Space


Barriers size : 350*500 MM

280 Meters
2.

700 mm Column Space


Barriers size : 350*500 MM

240 Meters




Advanced EVA Foam Board Material Highway Rotating Guardrail 21






Minimum Setting Length of Rotary Collision Guardrail


Highway grade Set separately(m) Lap setting(m)
Highway, First Class Highway 70 15
Grade two highway 48 10
Level 3 and 4 Highways 28 5






Company Profile



Taicheng Transportation Independents research and development, the self-designed anti-shock energy-absorbing highway roller barriers( new rotary anti-collisionguardrail )broke the technical monopoly of Korean American countries, filled the market gap of China's rotary guardrail, and was praised by the industry as “China's guardrail technology milestone ”.



The product has more than 20 national patents, successfully passed the collision test of small cars (house cars), buses and large trucks in the highway test site of the Ministry of Communications, and the test results and collision data are at the international leading level.


Advanced EVA Foam Board Material Highway Rotating Guardrail 22





Taicheng's product warranty period is 24 months, and the product service life can reach 10-15 years, which is not possible for ordinary suppliers. This is also the trust that we and our customers have in our factory products.

After-sales service we are online 24 hours a day. As long as you have any questions, we will always be there. We will have professional staff to answer you and provide you with technical support. Transportation We can

carry out transportation according to customer requirements. We always put customer requirements first.
