Product Details:
Payment & Shipping Terms:
|
| Name: | Roller Barrier, Safety Barricade, Removable Bollard, Car Parking Advertising Boom Gate Barrier | Roller Material: | EVA / PU / Polyurethane |
|---|---|---|---|
| Feature: | Easily Assembled, High Intensity, Eco Friendly, Corrosion Resistant | Roller Size: | Diameter 245/350 Mm |
| Grade: | International Level 4 | Weight: | 7-15 Kgs, As Per Size Of The Product, 30kg |
| Usage: | Road Traffic Safety, For Dancing And Singing, ROAD SIDE, Curve Roads, Safety Roller Barrier Boad Safety Barrier | Lifetime: | 10 Years |
| High Light: | Rotating Anti Collision Guardrail,Road Anti Collision Guardrail,Anti Collision Rolling Guardrail Barrier |
||
Hot-Selling Type Of Dangerous Road Section Necessary Road Rotating Anti-Collision Guardrail
1. Company Situation
Qingdao Taicheng Transportation Facilities Co., Ltd. is located in Jinkou Town, Jimo District, Qingdao City, Shandong Province. It is a professional rotating guardrail manufacturer with advanced technology and strong strength, which integrates development, production and sales.
2. Product Introduction

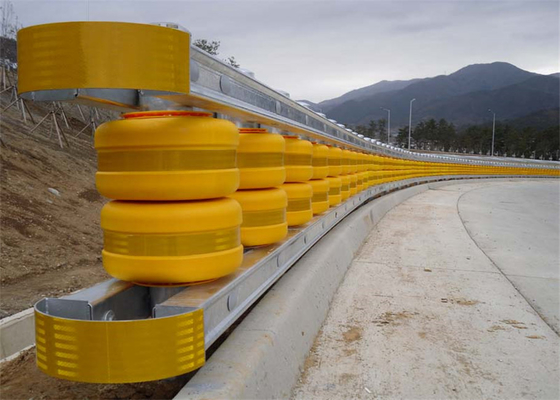

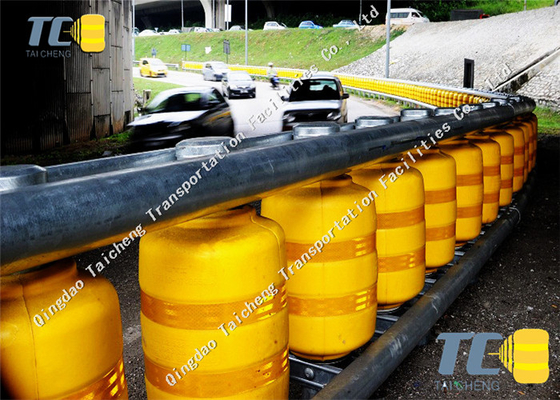

Safety roller barrier is a fixture that prevents drivers and passengers from fatal accidents by not only absorbing shock energy but also converting shock energy into rotational energy. It is also known as a roller barrier, rolling barrier, roller type barrier, drum barrier or highway roller, and widely used on sharp carve road or bend road zone. It is designed to effectively absorb shock and lead vehicle to the road direction to prevent large accidents.
The safety roller will effectively function for drivers to properly control vehicles with its noticeable color and
self-luminescence.The safety roller barrier is a new product. It is assembled with PU / EVA rollers and galvanized steel post and beams. The roller barrier differs from the w beam guardrail in the way it functions because It can absorb shock and lead vehicle to the road direction by roller, to prevent large accidents, whilst the W beam does not. The roller barrier is as well lighter and easier to install than w beam guardrail and it would be easier for recovery after attachment and easier to repair.d etc.
3. Product Parameters
|
No. |
Name |
Specifications(mm) |
Material |
|
1 |
Roller |
345*490/350*510(Customized) |
Polyurethane |
|
2 |
Post |
140*2000*4.5(Customized) |
Q235 |
|
3 |
PVC Tube |
160*500*6.5(Customized) |
PVC |
|
4 |
Beam |
100*80*4.0 |
Q235 |
|
5 |
Rolling Circle |
182×145×6.0 |
Polymer Ethylene |
|
6 |
End Socket |
1300×230×4.0 |
Q235 |
|
7 |
Post Cap |
145×145 |
Rubber |
|
8 |
Bolt |
M18*120 |
Q235 |
|
|
M18*180 |
Q235 |
|
|
|
M18*80 |
Q235 |
|
|
9 |
Nut |
M20 |
Q235 |
|
Item |
Specifications |
|
Apparent Density (KG/m³) |
≥125 |
|
Tensile Strength(MPa) |
≥1.15 |
|
Elongation(%) |
≥320 |
|
Compression Permanent Distortion (%) |
≥38 |
|
Resilience(%) |
≥72 |
4. Product use

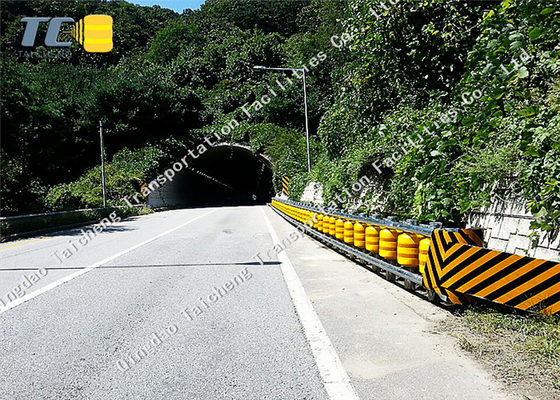

The rotating guardrails are especially suitable for installation and application in many accident areas such as tunnel entrances, central isolation belts, rapid turning zones, and complex intersections.
1) Road central safety roller.the road central safety roller is to divide the car line and prevent safety driving from opposite impact .
2) Road cross safety roller.the road cross safety roller is installed on the cross to prevent the cars from rushing to the greenbelt.
3) Safety roller for highway.it is very fast driving in the highway, and the safety roller is to protect the drivers&passengers from accident.
5. Henger's Products Advantage
|
A .The roller barrel is made of EVA and polyurethane composite material. |
This kind of high strength EVA and polyurethane material is elastic and anti-impact and wear-resistant, which can avoid crashing of the roller barrel. when it is impacted, can effectively protect the guardrail and driver and passengers. |
|
B. In addition to good anti-collision and wear-resisting performance. |
It also has the advantages of anti-chemical corrosion, anti-ultraviolet aging, weathering resistance and so on. It is not easy to be damaged, and its appearance is exquisite and not faded. |
|
C. The roller barrel also has very strong resilience. |
Even if they are seriously hit, they can be immediately restored to their original form. |
|
D. The roller barrel has bright color, such as yellow, orange, green, etc., and has high bright reflection effect. |
It has eyeball capture function, which can arouse the attention of the driver and reduce the accident rate. Especially to ensure their safety at night and on rainy days. |
6. Guardrail standard:
|
Standard Table |
||||||
|
ISO |
Germany |
U.K. |
French |
U.S.A. |
Japan |
China |
|
E235B |
S235JR |
S235JR |
S235JR |
Cr.D |
SS400 |
Q235B |
|
S235JRG1 |
S235JRG1 |
S235JRG1 |
A36 |
SM400A |
||
|
S235JRG2 |
S235JRG2 |
S235JRG2 |
|
SN400 |
||
7. Our services
|
A |
High quality goods with competitive price and fast delivery time. |
|
B |
Technical help with the solutions and questions. |
|
C |
OEM design,customized drawing for the guardrail and pipe. |
|
D |
Different standard products we would offer for different country and regions. |
|
E |
Different color and surface treatment,cold galvanized+spray, hot galvanized,hot galvanized+spray. |
8. Packing and shipping
For the roller barrel,it would be packed with opp bag+woven bag,or opp bag+woven bag+carton.
And for the guardrail,it would be packed as tie,and also the same as post.Shipping by air or sea as request.
