Payment & Shipping Terms:
|Material:||EVA Eco Material,Polyurethane,SS||Name:||Guardrail, Highway Guardrail|
|Payment:||TT||Feature:||High Intensity, Durable, Corrosion Resistant, Anti-corrosion|
|Size:||D350*H500mm(Single)||Packing:||Standard Export Package|

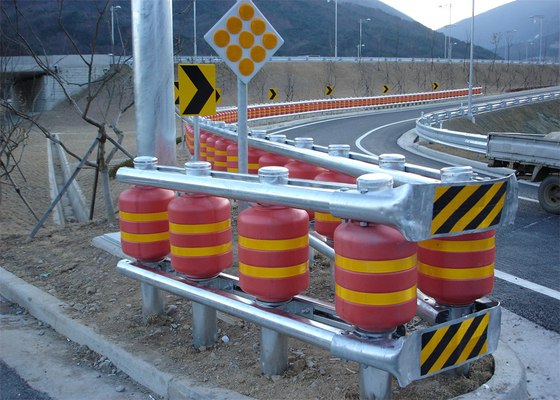

Double Barrel Safety Roller Barrier,
EVA Safety Roller Barrier,
Orange EVA Highway Roller Barrier
Qingdao Taicheng Transportation Facilities Co., Ltd, subsidiary of Qingdao Henger Group, is a technology-innovative company, based in Jinkou Industry of Qingdao City. Taicheng is devoting to improve the world road safety cause by creative R&D team, advanced production technique, high class manufacturing machines, complete testing method, reliable product quality and enthusiastic service

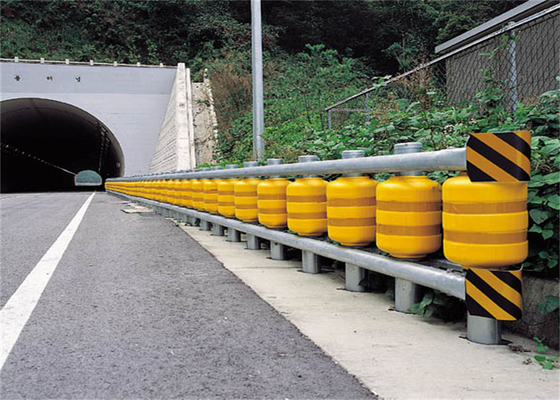

It is especially suitable for installation in accident-prone areas such as tunnel openings, central isolation belts, sharp turning areas, and complex intersections. Because of its good anti-collision performance, it can also be used as defensive equipment various power facilities, parking lot columns, large shelf angles and other objects.
The new type of highway rotating guardrail mainly adopts the method of "one column and four beams". By enhancing the performance and installation methods of the columns and fences, it is possible to effectively prevent cars from crossing the fence and driving out of the driving lane. On the other hand, the new anti-collision bucket guardrail has a built-in anti-collision energy-absorbing rotating anti-collision bucket, and a flexible bucket with anti-collision function
Qingdao Taicheng Transportation Equipment Co., Ltd. installs the energy absorber on the column so that the rotating drum can rotate freely on the column. Through the free rotation of the rotating bucket, the impact force of the car is decomposed, and the impact force perpendicular to the direction of the guardrail is decomposed into a direction parallel to the guardrail, thereby effectively absorbing and reducing the impact force. The rotating bucket effectively reduces the possibility of traffic accidents.
Applications of the Safety Roller Barriers
Concrete barriers and conventional metal guardrail system are effective, but cause major damage to the impacting vehicle and the guardrail itself. Now a new type barrier system called energy-absorption roller barrier system, invented by Qingdao Taicheng Transportation Facilities Co., Ltd that specializes in highway safe guardrail systems for years in China, rises in reponse to bringing innovation technology to road safety, reducing death rate in traffic accident higher than 90% compared to traditional guardrails.
On the other hand, the new anti-collision bucket guardrail has a built-in anti-impact energy-absorbing rotary anti-collision barrel, and the flexible barrel with anti-collision and energy absorption is mounted on the column, so that the rotating barrel can rotate freely on the column. The free rotation of the sets of anti-collision rotating rollers effectively decomposes the impact force of the car when the accident occurs, so that the impact energy perpendicular to the direction of the guardrail is converted into rotational energy parallel to the direction . The rotation energy can be combined with the elastic energy of the rotating barriers itself to keep the accident vehicle to maintain the normal traveling direction and speed. And it effectively mitigate the serious consequences of traffic accidents and greatly protect the personal safety of the passengers.
Structure of Qingdao Taicheng Safety Roller
Working principle of rotating guardrail
|When the vertical direction is pressurized until the outer diameter deformation amount is 40% of the original outer diameter, the load is immediately released, and the sample is not broken or delaminated.|
Drop hammer impact test
|At a temperature of 0 ° C and a height of 1 m, the hammer was impacted 10 times with a 1 kg weight, and no cracking occurred for more than 9 times.|
For the new rotating bucket guardrail, our capacity is 12-15km per month , which can meet the requirements of all urgent orders
1000 mm Column Space
Barriers size : 350*500 MM
700 mm Column Space
Barriers size : 350*500 MM
Taicheng's product warranty period is 24 months, and the product service life can reach 10-15 years, which is not possible for ordinary suppliers. This is also the trust that we and our customers have in our factory products.
After-sales service we are online 24 hours a day. As long as you have any questions, we will always be there. We will have professional staff to answer you and provide you with technical support. Transportation We can
carry out transportation according to customer requirements. We always put customer requirements first.
Contact Person: RoyZhao
