PVC Yellow Road Rolling Barrier With Galvanized Beam

PVC Yellow Road Rolling Barrier With Galvanized Beam
PVC Yellow Road Rolling Barrier With Galvanized Beam
video play

Large Image :  PVC Yellow Road Rolling Barrier With Galvanized Beam

Product Details:
Place of Origin: Qingdao
Brand Name: Taicheng
Certification: SB,ISO
Model Number: 07
Payment & Shipping Terms:
Minimum Order Quantity: 100mtr
Packaging Details: pallet
Delivery Time: 5-7days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Detailed Product Description
Material: PU/EVA+Galvanized Beam Color: Yellow,Orange
Feature: Easily Assembled,High Intensity,Eco Friendly,Corrosion Resistant,two Waves Guardrail Usage: Road Traffic Safety,For Dancing And Singing,ROAD SIDE,Safety Roller Barrier Road Safety Barrier
Type: Double Buckets Or Single Bucket Package: PVC Films And Carton,standard Packing
High Light:

PVC Yellow Road Rolling Barrier

,

Galvanized Beam Road Rolling Barrier

,

Double Buckets Safety Roller Barrier

PVC Yellow Road Rolling Barrier​





1. Product Introduction

Rolling system with "one upright four guardrails", can prevent the car through the fence, out of the driving lane effectively by strengthening the performance and installation of upright and guardrails. Rolling system use a rotating structure, install the roller barrier on the upright and make it rotate freely. This free rotation can disassemble the force of percussion from the car. And it will be adsorbed and reduced by the roller barrier effectively. So it can decrease the influence caused by traffic accidents. rolling system will create a new traffic protection way.
Highway Rolling Guardrail Barrier For Vehicle Traffic Protection 0

Double Buckets Q235 Q345 Road Rolling Barrier Customizable 1
2. Product Parameters

No. Name Specifications(mm) Material
1 Roller 345*490/350*510(Customized) Polyurethane
2 Post 140*2000*4.5(Customized) Q235
3 PVC Tube 160*500*6.5(Customized) PVC
4 Beam 100*80*4.0 Q235
5 Rolling Circle 182×145×6.0 Polymer Ethylene
6 End Socket 1300×230×4.0 Q235
7 Post Cap 145×145 Rubber
8 Bolt M18*120 Q235
  M18*180 Q235
  M18*80 Q235
9 Nut M20 Q235



Item Specifications
Apparent Density (KG/m³) ≥125
Tensile Strength(MPa) ≥1.15
Elongation(%) ≥320
Compression Permanent Distortion (%) ≥38
Resilience(%) ≥72

Highway Rolling Guardrail Barrier For Vehicle Traffic Protection 1

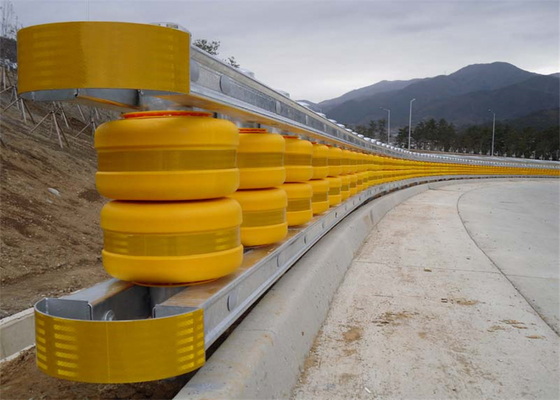

3. How safety roller barrier works?




1. The rotating barrel converts great shock from vehicle collision to rotational energy to absorb shock.
2. Upper and lower frames adjust tires of large and small vehicles to prevent the steering system function loss.
3. The three-dimensional structure of D-shaped frame and buffering bracket distribute and absorb the 2nd shock.
4. Props at an interval of 0.7 m increase bearing power to prevent accident vehicles from going over the guardrail and turning over into a dangerous area.
5. The product has a rotating barrel made of EVA with excellent shock absorption power, three-dimensional buffering frames and dense props supporting the frames.
