Payment & Shipping Terms:
|Features:||Anti-corrosion, High Tempreture Resistance, Low Friction||Product Name:||Roller Barrier|
|Material:||Polyurethane, Hot Galvanized Steel||Color:||Yellow, Orange, As You Required|
|Application:||Highway, Tunnel, Bridge||Certificate::||SB,ISO9001,CIC|
EVA Highway Safety Guardrail,
Yellow Orange Highway Safety Guardrail,
EVA Rotating Barrier
Highway Guardrail Safety Yellow Orange EVA Roating Barrier
Highway Guardrail Safety Yellow Orange EVA Roating Barrier Introduction

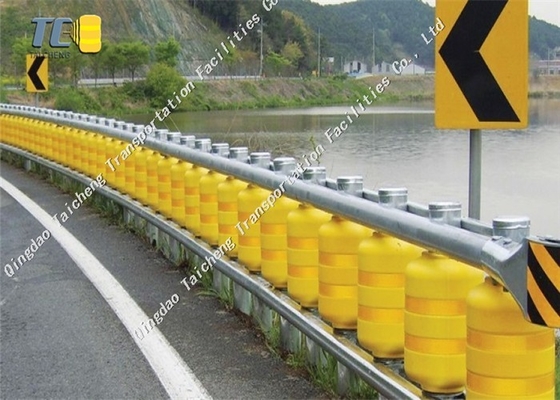

Anti-crash highway roller barrier is a new product. It is assembled by PU / EVA rollers and galvanized steel post and beams.But it is different from the w beam guardrail.It can absorb shock and lead vehicle to the road direction by roller, to prevent large accidents. And the roller is more light and easy to install than w beam guardrail. It would be recovery after attach and easy to repaire.
The roller barrier is composed of columns, rotating cylinder, u-beam and connecting parts. All steel components are treated with hot-dip galvanized anti-rust treatment.The vertical column is separated by 1m or 0.7m, and two rotating cylinders are installed on each vertical column. This rotating cylinder takes EVA as the main material, and 17 auxiliary materials such as PE and related chemical additives are added.Continuous working temperature is between 60 ° and 70 °.
Highway Guardrail Safety Yellow Orange EVA Roating Barrier Features
1.Reduce speed by stopper board
2. Guide reflective leads a driver to drive safely
3. Recyclable material (eco-friendly)
4. Help a vehicle turn back to the road by its spinning when the car crashed the rollers laterally
5. Minimize fatal damage of people and vehicles by absorbing collision shock
6. Reduce costs in repairing and maintenance due to Roller’s resilience.
7. Stopper boards help prevent larger accidents by slowing down Roller’s spin
8. Can be used for many years, less cost.
Highway Guardrail Safety Yellow Orange EVA Roating Barrier Application
1. Curved Median Strip
2. Curved Ramp
3. Diverging Point
4. Curved Tunnel
5. Curved Downhill
6. Passge Intersection
7. School Zone etc.
Highway Guardrail Safety Yellow Orange EVA Roating Barrier Shipping Details
|No.||Product Specifications||40*HQ Container Shipping Capacity|
|1.||1000 mm Column Space Barriers size : 350*500 MM||280 Meters|
|2.||700 mm Column Space Barriers size : 350*500 MM||240 Meters|
Completely suitable for all weather conditions, the Polyurethane foam safety roller barrier can be installed in the median between opposing traffic flows, on curved median strips, curved ramps, diverging points, curved downhill corners, hillside locations, school zones and in danger zones, protection zones for posts, street lights and general infrastructure within the road reserve.
2.Cost efficient lifecycle.
The lifecycle cost of the Polyurethane foam safety roller barrier out performs traditional crash barrier systems as it requires less frequent repair, replacement and maintenance. More significantly the Polyurethane foam safety roller barrier provides reduced occupant risk of injury.
The cost benefit of the Polyurethane foam safety roller barrier makes it an irrefutable crash barrier solution comparing it to other semi ridged barrier systems.
Our product is flame retardant and recyclable. Adding or removing rollers can adjust the barrier for complete suitability to any landscape. Solar powered lights and speed displays can be added when they are warranted.
4.Meeting global compliance.
Structural Adequacy – the ability for the barrier to remain functional post a crash impact. This is a critical when considering the time to repair barriers after a crash event
Occupant Risk – the ability to minimise impact injury to vehicle occupants
Vehicle Trajectory Post Impact – the ability to keep a vehicle’s movement directed in the direction of original travel. The key being assessed is the redirection angle to minimise or eliminate the likelihood of an errant vehicle being driven into oncoming traffic lanes, or into pedestrians on the roadside, property or furniture.
1. Are you a manufacturer or trading company?
We are a direct manufacturer.
2. How does your factory control quality?
Each of our products will be strictly tested before shipping out, and clients are also welcomed to inspect their goods in our factory.
3. Can I get some samples first?
Yes! Sample orders are welcomed.
4. What is your advantage compared with your competitors?
(1). Qualified Manufacturer
(2). Reliable Quality Control
(3). Competitive Price
(4). High Efficiency working (24 hours)
(5). One-Stop Service
Contact Person: Echo-Cui
Material: EVA,Q235 Q345,PE ect.,EVA and PU Foam (Polyurethane),Hot rolled steel
Product name: Roller barrier,Manufacturer of highway guardrail,Highway safety guardrail / Anti Crash Roller Barrier 350*500mm,New Design Roller Crash Barrier,China suppliers parking crash barrier
Application: Outdoor,Collision avoidance; Highway protect; Road Traffice safty,Anticollision,bridge,Highway
