Qingdao TaiCheng transportation facilities Co.,Ltd.
Home ProductsHighway Roller Barrier

Pu Foam Highway Roller Barrier Rotating with 5PCS Beam

China Qingdao TaiCheng transportation facilities Co.,Ltd. certification
China Qingdao TaiCheng transportation facilities Co.,Ltd. certification
I am very grateful to the staff of Taicheng for their cooperation. Our guardrail installation is very beautiful, and my customers like it too. Next time I will buy back.

—— Le Thao

I'm Online Chat Now

Pu Foam Highway Roller Barrier Rotating with 5PCS Beam

Pu Foam Highway Roller Barrier Rotating with 5PCS Beam
Pu Foam Highway Roller Barrier Rotating with 5PCS Beam Pu Foam Highway Roller Barrier Rotating with 5PCS Beam Pu Foam Highway Roller Barrier Rotating with 5PCS Beam Pu Foam Highway Roller Barrier Rotating with 5PCS Beam

Large Image :  Pu Foam Highway Roller Barrier Rotating with 5PCS Beam

Product Details:
Place of Origin: QingDao
Brand Name: TaiCheng
Certification: ISO
Model Number: RBD245
Payment & Shipping Terms:
Minimum Order Quantity: 100 meters / Unit
Price: USD 245 Each Meters
Packaging Details: Pallet / wooden boxes / Suitable packaging
Delivery Time: 15-20 Days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Meters Per 25 Days Or More Less Time
Detailed Product Description
Roller Material: EVA / PU / Polyurethane Specification: Beam 1/2/3/4/5PCS
Spacing: 650/700/1000 MM Metal Material: Q235 Hot-dip Galvanizing
Grade: International Level 4 Color: Orange / Yellow / Red / Green
Lifetime: 10 Years Usage: Road Traffic Safety,Highway And Bridge Safety
High Light:

Pu Foam Highway Roller Barrier

,

Rotating Rolling Guard Barrier

,

5PCS Beam Highway Roller Barrier

New Rotating Guardrail Highway Rotating Guardrail And High Quality Pu Foam Roller Guardrail



What is Rolling Barrier?

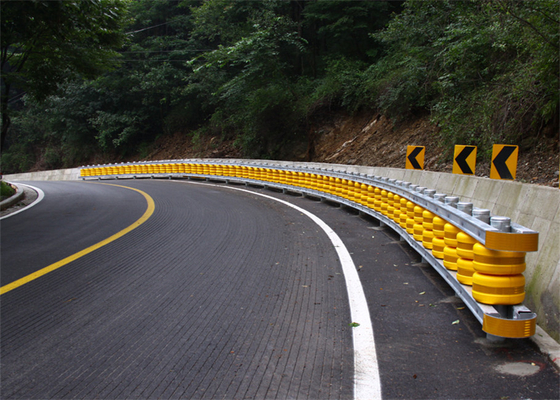

Rolling Barrier redirects errant vehicle to the right direction by effectively absorbing the impact energy with rollers, upper and lower rails (the impact-energy is converted into rotational energy)



Pu Foam Highway Roller Barrier Rotating with 5PCS Beam 0



Pu Foam Highway Roller Barrier Rotating with 5PCS Beam 1


3. Product Parameters





No. Name Specifications(mm) Material
1 Roller 345*490/350*510(Customized) Polyurethane
2 Post 140*2000*4.5(Customized) Q235
3 PVC Tube 160*500*6.5(Customized) PVC
4 Beam 100*80*4.0 Q235
5 Rolling Circle 182×145×6.0 Polymer Ethylene
6 End Socket 1300×230×4.0 Q235
7 Post Cap 145×145 Rubber
8 Bolt M18*120 Q235
  M18*180 Q235
  M18*80 Q235
9 Nut M20 Q235







Item Specifications
Apparent Density (KG/m³) ≥125
Tensile Strength(MPa) ≥1.15
Elongation(%) ≥320
Compression Permanent Distortion (%) ≥38
Resilience(%) ≥72






Key Features

  • Easy installation and maintenance on curved road

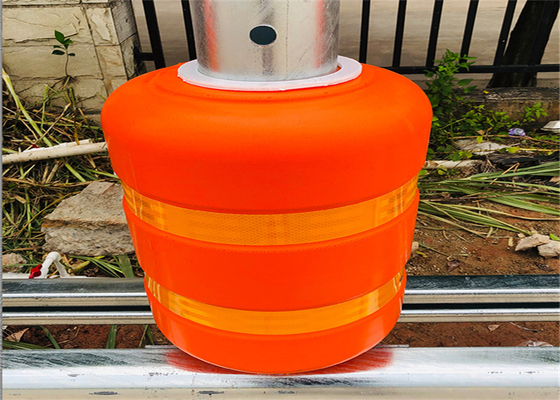

  • The high-elastic synthetic resin roller is hardly damaged by impact. (Cover: PE, Core: Urethane)
  • Powder coating on rails with various colors is available upon request.
  • Minimizes damage on motorists and vehicles with rollers and dual guardrails.Pu Foam Highway Roller Barrier Rotating with 5PCS Beam 2
