Payment & Shipping Terms:
|Material:||EVA Eco Material,Polyurethane,SS||Name:||Guardrail, Highway Guardrail|
|Payment:||TT||Feature:||High Intensity, Durable, Corrosion Resistant, Anti-corrosion|
|Size:||D350*H500mm(Single)||Packing:||Standard Export Package|
Flame Retardant Rotating Barrel,
EVA Filled Flame Retardant Rotating Barrel,
High Energy Absorption Roller Guardrail
Taicheng will always follow the company tenet of “stay true to the mission, people foremost, Technology Innovation”, forging ourselves into a high level transportation facilities company with international competitiveness, providing high quality safety roller barrier systems to the society and guarantee the road safety to China and the whole world.The color of the rotating anti-collision bucket can be customized into various warning colors such as yellow, orange, orange- red, green and so on. The high degree of bright reflection effect makes the anti-collision barrel maintain high recognition and warning degree in the bad weather conditions such as nighttime and rainy days, catching the driver's eyeball and also can catch the driver's attention and reducing the accident rate.

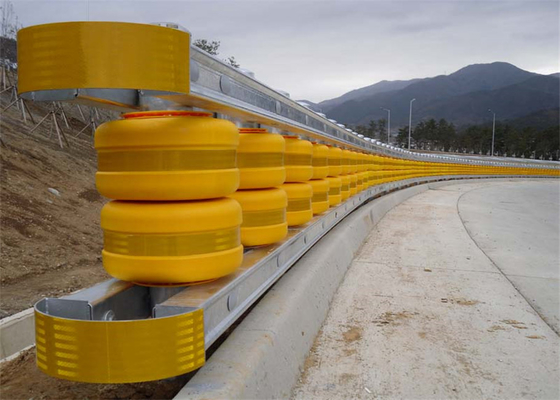

It is especially suitable for installation in accident-prone areas such as tunnel openings, central isolation belts, sharp turning areas, and complex intersections. Because of its good anti-collision performance, it can also be used as defensive equipment various power facilities, parking lot columns, large shelf angles and other objects.
The new type of highway rotating guardrail mainly adopts the method of "one column and four beams". By enhancing the performance and installation methods of the columns and fences, it is possible to effectively prevent cars from crossing the fence and driving out of the driving lane. On the other hand, the new anti-collision bucket guardrail has a built-in anti-collision energy-absorbing rotating anti-collision bucket, and a flexible bucket with anti-collision function
Qingdao Taicheng Transportation Equipment Co., Ltd. installs the energy absorber on the column so that the rotating drum can rotate freely on the column. Through the free rotation of the rotating bucket, the impact force of the car is decomposed, and the impact force perpendicular to the direction of the guardrail is decomposed into a direction parallel to the guardrail, thereby effectively absorbing and reducing the impact force. The rotating bucket effectively reduces the possibility of traffic accidents.
Applications of the Safety Roller Barriers
Structure of Qingdao Taicheng Safety Roller
Working principle of rotating guardrail
|When the vertical direction is pressurized until the outer diameter deformation amount is 40% of the original outer diameter, the load is immediately released, and the sample is not broken or delaminated.|
Drop hammer impact test
|At a temperature of 0 ° C and a height of 1 m, the hammer was impacted 10 times with a 1 kg weight, and no cracking occurred for more than 9 times.|
For the new rotating bucket guardrail, our capacity is 12-15km per month , which can meet the requirements of all urgent orders
1000 mm Column Space
Barriers size : 350*500 MM
700 mm Column Space
Barriers size : 350*500 MM
Taicheng's product warranty period is 24 months, and the product service life can reach 10-15 years, which is not possible for ordinary suppliers. This is also the trust that we and our customers have in our factory products.
After-sales service we are online 24 hours a day. As long as you have any questions, we will always be there. We will have professional staff to answer you and provide you with technical support. Transportation We can
carry out transportation according to customer requirements. We always put customer requirements first.
