Product Details:
Payment & Shipping Terms:
|
| Material: | EVA,Q235 Q345,PE Ect.,EVA And PU Foam (Polyurethane),Hot Rolled Steel | Color: | Yellow,Orange,white |
|---|---|---|---|
| Product Name: | Roller Barrier,Manufacturer Of Highway Guardrail,Highway Safety Guardrail / Anti Crash Roller Barrier 350*500mm,New Design Roller Crash Barrier,China Suppliers Parking Crash Barrier | Application: | Outdoor,Collision Avoidance; Highway Protect; Road Traffice Safty,Anticollision,bridge,Highway |
| Usage: | Road Traffic Safety,Highway And Bridge Safety,ROAD SIDE,Highway,outdoor | Type: | Double Buckets Or Single Bucket,w-beam,three Waves Beam,single&double Barrel,Single Barrel |
| Feature: | High Intensity,Durable,Corrosion Resistant,anti-corrosion,W Beam Guardrail | Name: | Fence,barrier,Guardrail,W-Beam,galvanized Highway Guardrail |
| Surface Treatment: | Hot Dipped Galvanized,PVC Coated,PU,Powder Coating,Hot Dip Galvanized | Standard: | JT/T281-2007 |
| Advantage: | Easy Replace,the Directly Manufacturer And Exported Company,Rustproof,long Life Time | Size: | D350*H500mm(Single),request,Customized |
| Packing: | Pallet,Standard Export Package Or As Per Client's Requirements,Standard Export Package | Weight: | 100kg/m,12kgs /7kgs Per Pc,5.0 Or 9.9kgs |
| Height: | 900mm,81-85mm,1100mm | Length: | 510mm,2000mm/1250mm,2320-5320mm |
| Technology: | Hot Galvanized+cold Rolled,injection,Cold Rolled,cold Rolling | Thickness: | 4 Mm Or According To Consumers Request |
| Diameter: | 350mm | ||
| High Light: | Highway PVC EVA Safety Road Guardrail,Q235 Safety Road Guardrail,H500mm Guardrail Barrier System |
||
Introduction

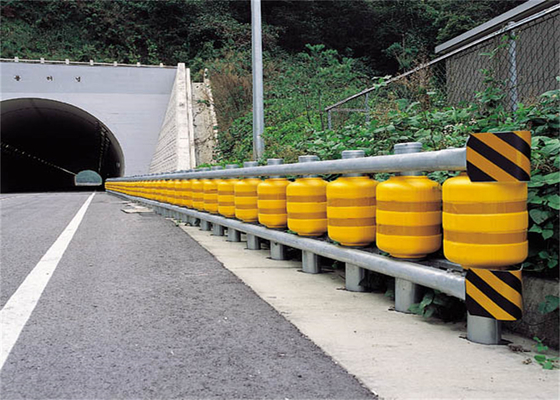

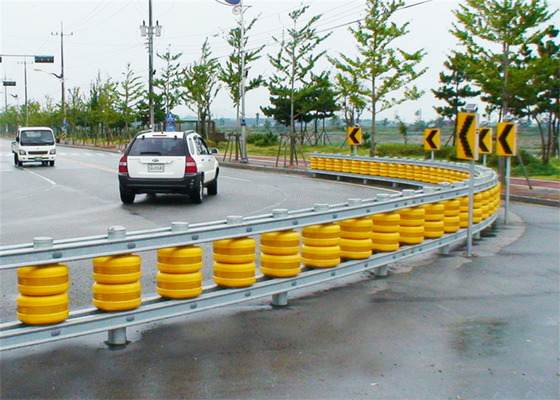

Domestic and foreign traffic accident research data show that, reasonably set to meet the protection requirements of the guardrail, can effectively reduce the vehicle out of the roadside guardrail or through the secondary collision with the chances of collision, so as to avoid unnecessary property damage and casualties. Rolling crash barrier is mainly used in small radius curve section, tunnel entrance transition, interchange exit triangle end and other dangerous sections. The increase of car ownership makes the road bear the pressure of the vehicle running too much, easy to appear sudden traffic accidents. In the highway traffic accidents, a large number of accidents with the road on both sides of the guardrail collision-related. Guardrail design can make the runaway vehicle in collision with the guardrail to return to the normal direction of travel, maximum absorption of impact energy, reduce the injury to the driver and passengers. Highway guardrail for different terrain environment and accident-prone areas with different design solutions.
Main components
The rotating collision guardrail is mainly composed of column, rotating barrel, casing, rubber cushion, swivel ring, beam, reflective strip and bolt. The side view of the guardrail is shown in the figure, using a column and four columns of the installation method.
Composition
The rolling safety barrier is made of ethylene vinyl acetate copolymer (EVA) and polyurethane composite material, which is elastic, impact-resistant and wear-resistant and can effectively prevent the rotating barrel from being shattered upon impact, and the good recovery force of the rotating barrel also ensures that it can quickly return to its original state after a serious impact.
Working Principle

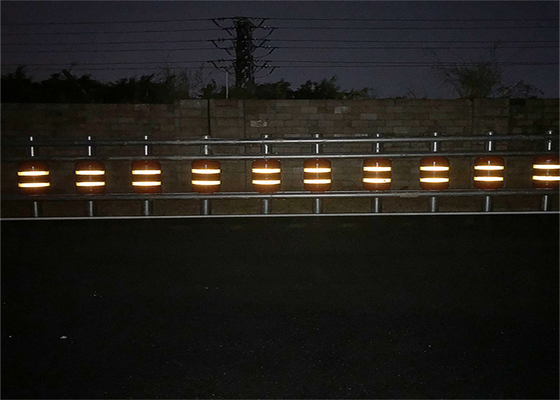

The rotating barrel can also rotate freely on the column, through the rotation of the rotating barrel will collision force decomposition, drive the runaway vehicle incidence angle decreasing, the correct completion of the vehicle export to reduce the risk of secondary accidents. In addition, the bright color of the rotating barrel can also improve the driver's attention to ensure driving safety. The protection mechanism of the rotating collision barrier is shown in the figure.
Safety Analysis
When the vehicle collides with the rotating guardrail, the vehicle will drive the rotating barrel to rotate, and part of the lateral impact force will be transformed into rolling resistance, which will reduce the lateral and longitudinal acceleration values, thus reducing the injury to the driver and passengers, and also reducing the deformation and damage of the vehicle. As the vehicle collision process, the longitudinal force is rolling friction, which is much smaller than the traditional guardrail and the sliding friction between the runaway vehicle, so the rotating collision guardrail can make the collision time shorter, so that the vehicle out of the speed increases, so that the collision process resistance becomes smaller, so as to reduce the difficulty of the driver in the collision process, so that the vehicle as soon as possible and the guardrail out of the collision, the correct completion of the guidance and reduce the risk of the second accident.
Paraments
| No. | Name | Specifications(mm) | Material |
| 1 | Roller | 345*490/350*510(Customized) | Polyurethane |
| 2 | Post | 140*2000*4.5(Customized) | Q235 |
| 3 | PVC Tube | 160*500*6.5(Customized) | PVC |
| 4 | Beam | 100*80*4.0 | Q235 |
| 5 | Rolling Circle | 182×145×6.0 | Polymer Ethylene |
| 6 | End Socket | 1300×230×4.0 | Q235 |
| 7 | Post Cap | 145×145 | Rubber |
| 8 | Bolt | M18*120 | Q235 |
| M18*180 | Q235 | ||
| M18*80 | Q235 | ||
| 9 | Nut | M20 | Q235 |
| Item | Specifications |
| Apparent Density (KG/m³) | ≥125 |
| Tensile Strength(MPa) | ≥1.15 |
| Elongation(%) | ≥320 |
| Compression Permanent Distortion (%) | ≥38 |
| Resilience(%) | ≥72 |
With the continuous optimization of the guardrail structure and the continuous development of material science, rotating guardrail can impact a higher level of guardrail protection requirements, the application of dangerous sections of the highway can protect the safety of the occupants and vehicles to a greater extent. Rotating type collision guardrail guide and buffer performance compared with the traditional guardrail have a breakthrough improvement. In addition, rotating collision barrier and landscape natural integration, can improve the road environment greening level, long-term use will not only significantly improve the level of road safety, but also can effectively reduce the direct economic loss, has an important social and economic benefits.
