Product Details:
Payment & Shipping Terms:
|
| Product Name: | Safety Roller Barrier,Road Barrier,Highway Guardrail,Queue Line | Roller Size: | Diameter 245/350 MM |
|---|---|---|---|
| Specification: | Beam 1/2/3/4/5PCS | Production Time: | With 20-25 Days |
| Color: | Orange / Yellow / Red / Green | Spacing: | 700 MM |
| Lifetime: | 10-15 Years | Grade: | International Level SB |
| Customed: | Allowed | Application: | Outdoor,Anticollision,Road Side,private |
| Feature: | Easily Assembled,High Intensity,Corrosion Resistant | ||
| High Light: | 1000mm Spacing Safety Roller Barrier,Outdoor Safety Roller Barrier,Queue Line Crash Beam Barrier |
||

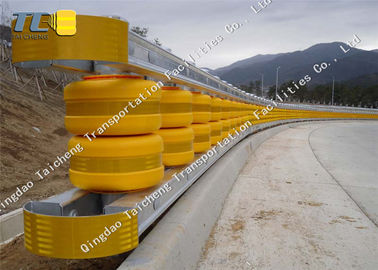

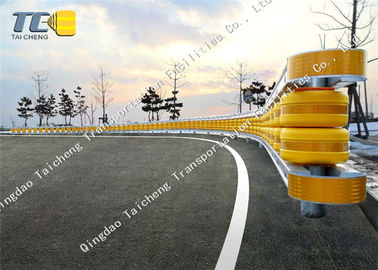

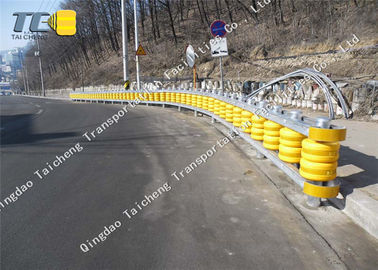

Safety Roller Barrier System For 1000mm Spacing More Than 20 years Life
Advantages of guardrail
Easy to install:
The new safty roller barrier system series adopts modular design, the whole installation is simple and quick, no need for professional guidance, the installation is safe and pollution-free, and the installation cost is low.
Low cost after sale:
The energy-absorbing anti-collision barrel has strong wear resistance and impact resistance. The safty roller barrier system is designed firmly. It is not necessary to replace the guardrail for ordinary traffic accidents, can save a lot of after-sales and maintenance costs.
Beautify Environment:
Compared with the traditional guardrail, thesafty roller barrier system is beautiful and colorful. In addition to the high degree of warning, it can also beautify the surrounding environment, especially in the beautiful scenery of the mountainous area, forming a unique combination with the surrounding scenery.
Product Parameters
|
Products specification Roller (royalty barrel) |
H240xφ350mm,H270xφ350 |
| Post | φ140x2200x4.5mm |
| Cross beam | 100x80x4.0mm |
| Connecting rack | 430x84x70x4.0mm |
| U shape frame | 380x70x6.0mm |
| Turning circle | φ182xφ145x2.0mm |
| Square buckle | 46x64x4.0mm |
| Terminal | 1300x230x2.0mm |
| Bolts&Nuts | M20x60/120/140mm |
| Post spacing | 700 mm or 1000 mm as request drawing |
| Material | EVA/Polyurethane for barrel,and Q235/Q345 for guardrail |
| Operating temperature | -60℃~70℃(-76℉~158℉) |
| Anti-corrision coefficien | 3 times more than the ordinary guardrail |
| Crash test | Report for Safety Performance Evaluation of Highway Barriers Four (SB) Levels |

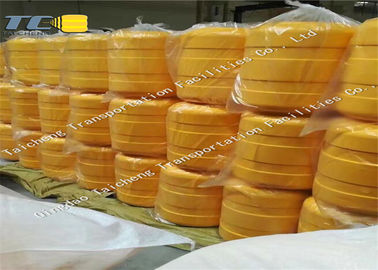

Packing and shipping
For the roller barrel,it would be packed with opp bag+woven bag,or opp bag+woven bag+carton.and for the guardrail,
it would be packed as tie,and also the same as post.Shipping by air or sea as request.
