| Product Name: | Safety Roller Barrier,Road Barrier,Highway Guardrail,Queue Line | Metal Material: | Q235 Hot-dip Galvanizing |
|---|---|---|---|
| Roller Size: | Diameter 245/350 MM | Specification: | Beam 1/2/3/4/5PCS |
| Production Time: | With 25 Days | Color: | Orange / Yellow / Red / Green |
| Spacing: | 1000 MM | Lifetime: | 10 Years |
| Grade: | International Level 4 | Customed: | Allowed |
| High Light: | Pu Foam Safety Roller Barrier,Hole Bolts Nuts Safety Roller Barrier,Q235 Traffic Rolling Barrier System |
||

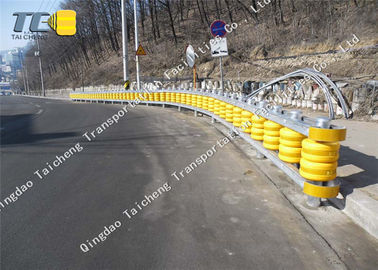

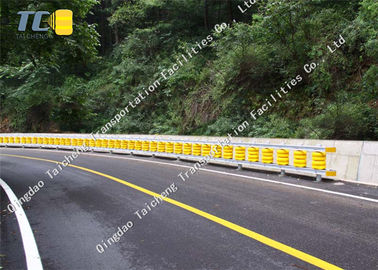

Safety roller barrier system
The new type safty roller barrier system series have been widely used in Korea ,Japan ,the United States ,the United Arab Emirates and other countries . The accident rate , economic loss rate and accident mortality rate of the installation sections have been reduced by more than 95% ,which greatly protects the lives of pedestrians . And the safty roller barrier system provides a reliable guarantee and a strong shield for road safety. I believe that in the near future, the new rotary anti-collision guardrail will surely popularize the highways and accidents in China, introduce innovative protection design for the Chinese road environment, bring leaps and bounds to road safety, and become a life project for the benefit of future generations.
Advantages of guardrail
Easy to install:
The new safty roller barrier system series adopts modular design, the whole installation is simple and quick, no need for professional guidance, the installation is safe and pollution-free, and the installation cost is low.
Low cost after sale:

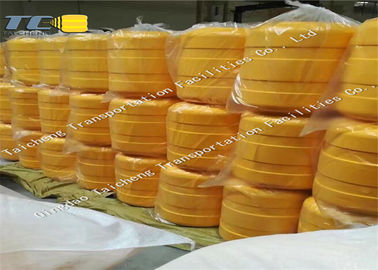

The energy-absorbing anti-collision barrel has strong wear resistance and impact resistance. The safty roller barrier system is designed firmly. It is not necessary to replace the guardrail for ordinary traffic accidents, can save a lot of after-sales and maintenance costs.
Beautify Environment:
Compared with the traditional guardrail, thesafty roller barrier system is beautiful and colorful. In addition to the high degree of warning, it can also beautify the surrounding environment, especially in the beautiful scenery of the mountainous area, forming a unique combination with the surrounding scenery.
Product Parameters
|
Products specification Roller (royalty barrel) |
H240xφ350mm,H270xφ350 |
| Post | φ140x2200x4.5mm |
| Cross beam | 100x80x4.0mm |
| Connecting rack | 430x84x70x4.0mm |
| U shape frame | 380x70x6.0mm |
| Turning circle | φ182xφ145x2.0mm |
| Square buckle | 46x64x4.0mm |
| Terminal | 1300x230x2.0mm |
| Bolts&Nuts | M20x60/120/140mm |
| Post spacing | 700 mm or 1000 mm as request drawing |
| Material | EVA/Polyurethane for barrel,and Q235/Q345 for guardrail |
| Operating temperature | -60℃~70℃(-76℉~158℉) |
| Anti-corrision coefficien | 3 times more than the ordinary guardrail |
| Crash test | Report for Safety Performance Evaluation of Highway Barriers Four (SB) Levels |
Product application
1. accident-prone roads
2. curved expressway entrance and exit ramp
3. central isolation belt of urban road & country road
4. Fork road
5. Tunnel portal entrance & exit
6. Intricate crossroads
Our services
We are special in the corrugated beam highway guardrail and corrugated Steel Pipe for traffic and would offer you much supports,
1.High quality goods with competitive price and fast delivery time.
2.Technical help with the solutions and questions.
3.OEM design,customized drawing for the guardrail and pipe.
4.Different standard products we would offer for different country and regions.
5.Different color and surface treatment,cold galvanized+spray, hot galvanized,hot galvanized+spray.
