| Brand Name: | TaiCheng |
| Model Number: | RBD245 |
| MOQ: | 100 meters / Unit |
| Price: | USD 245 Each Meters |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 Meters Per 25 Days Or More Less Time |
Orange polyurethane roller safety bar
| No. | Name | Specifications(mm) | Material |
| 1 | Roller | 345*490/350*510(Customized) | Polyurethane |
| 2 | Post | 140*2000*4.5(Customized) | Q235 |
| 3 | PVC Tube | 160*500*6.5(Customized) | PVC |
| 4 | Beam | 100*80*4.0 | Q235 |
| 5 | Rolling Circle | 182×145×6.0 | Polymer Ethylene |
| 6 | End Socket | 1300×230×4.0 | Q235 |
| 7 | Post Cap | 145×145 | Rubber |
| 8 | Bolt | M18*120 | Q235 |
| M18*180 | Q235 | ||
| M18*80 | Q235 | ||
| 9 | Nut | M20 | Q235 |
| Item | Specifications |
| Apparent Density (KG/m³) | ≥125 |
| Tensile Strength(MPa) | ≥1.15 |
| Elongation(%) | ≥320 |
| Compression Permanent Distortion (%) | ≥38 |
| Resilience(%) | ≥72 |
Product use
|
A |

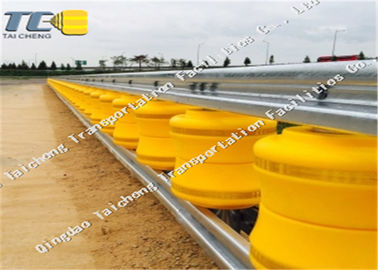

Road central safety roller.the road central safety roller is to divide the car line and prevent safety driving from opposite impact |
|
B |
Road cross safety roller.the road cross safety roller is installed on the cross to prevent the cars from rushing to the greenbelt. |
|
C |

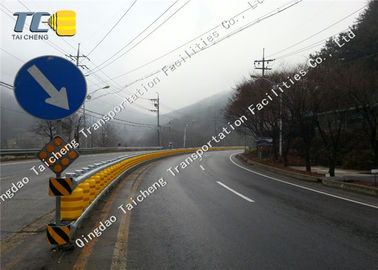

Safety roller for highway.it is very fast driving in the highway, and the safety roller is to protect the drivers&passengers from |
