| Product Name: | Anti-Shock Energy Roller Barriers/Absorbing Roller Barriers/Highway Roller Barriers/Rotating Guardrail | Brand: | Taicheng |
|---|---|---|---|
| Material: | Pu/Eva+Galvanized Beam | Spacing: | 1m/0.7m/0.5m |
| Height: | 490mm/510mm | Diameter: | 345mm/370mm |
| Certificate: | SB Level Safety Certificate | Warranty: | 24 Months |
| Production Time: | 10-15 Days | Colour: | Yellow/Red Etc. |
| Output: | 300 Meters/day | ||
| High Light: | Rotating Guardrail Road Safety Barriers,Anti Collision Road Safety Barriers,1m Highway Roller Barrier |
||
Portable Movable Guard Rail Safety Rolling Barrier Anti - Ultraviolet Aging
Product Introduction
The rotating guardrail combines the advantages of traditional barrier and new type energy -absorption anti-collision roller barrel. It inserts the anti-collision roller barrel into strengthened traditional barrier. When traffic accident happening, the roller barrel can rotate freely on the columns, and through this free rotation of the roller, they break down the impact force of the car. it can efficiently resolve the impact energy by converting the impact energy to rotational energy and pull the accident car back to normal motion trail.
Henger's Products Advantage
1. The roller barrel is made of EVA and polyurethane composite material. This kind of high strength EVA and polyurethane material is elastic and anti-impact and wear-resistant, which can avoid crashing of the roller barrel. when it is impacted, can effectively protect the guardrail and driver and passengers.
2. In addition to good anti-collision and wear-resisting performance, it also has the advantages of anti-chemical corrosion, anti-ultraviolet aging, weathering resistance and so on. It is not easy to be damaged, and its appearance is exquisite and not faded. In the outdoor natural conditions, the service life is more than 10 years. Once a traffic accident occurs, when the car hits it, the energy of the collision is converted into the rotational energy by the way of rotation, so as to maintain the normal driving direction and speed of the car, so as to minimize the incidence of traffic accidents. To protect the safety of human life and provide a new road safety protection.
3. The roller barrel also has very strong resilience. Even if they are seriously hit, they can be immediately restored to their original form.
4. The roller barrel has bright color, such as yellow, orange, green, etc., and has high bright reflection effect. It has eyeball capture function, which can arouse the attention of the driver and reduce the accident rate. Especially to ensure their safety at night and on rainy days.
Product Parameters
| No. | Name | Specifications(mm) | Material |
| 1 | Roller | 345*490/350*510(Customized) | Polyurethane |
| 2 | Post | 140*2000*4.5(Customized) | Q235 |
| 3 | PVC Tube | 160*500*6.5(Customized) | PVC |
| 4 | Beam | 100*80*4.0 | Q235 |
| 5 | Rolling Circle | 182×145×6.0 | Polymer Ethylene |
| 6 | End Socket | 1300×230×4.0 | Q235 |
| 7 | Post Cap | 145×145 | Rubber |
| 8 | Bolt | M18*120 | Q235 |
| M18*180 | Q235 | ||
| M18*80 | Q235 | ||
| 9 | Nut | M20 | Q235 |
| Item | Specifications |
| Apparent Density (KG/m³) | ≥125 |
| Tensile Strength(MPa) | ≥1.15 |
| Elongation(%) | ≥320 |
| Compression Permanent Distortion (%) | ≥38 |
| Resilience(%) | ≥72 |
Product use

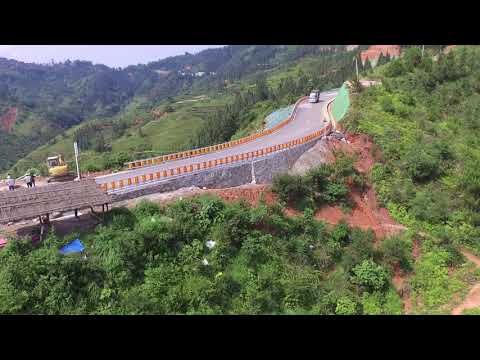

The rotating guardrails are especially suitable for installation and application in many accident areas such as tunnel entrances, central isolation belts, rapid turning zones, and complex intersections.
Service and transportation:
Taicheng's product warranty period is 24 months, and the average supplier cannot achieve such a long time. This is also the trust that we and our customers have in our factory products.
After-sales service We are online 24 hours a day. As long as you have any questions, we will always be there. We will have professional staff to answer you and provide you with technical support.
Transportation We can carry out transportation according to customer requirements. We always put customer requirements first.
