Recyclable Welded Wire Mesh Fence Hot Dipped Galvanized Salt Spray Resistance

China Qingdao TaiCheng transportation facilities Co.,Ltd. certification
China Qingdao TaiCheng transportation facilities Co.,Ltd. certification
I am very grateful to the staff of Taicheng for their cooperation. Our guardrail installation is very beautiful, and my customers like it too. Next time I will buy back.

—— Le Thao

I'm Online Chat Now

Recyclable Welded Wire Mesh Fence Hot Dipped Galvanized Salt Spray Resistance

Recyclable Welded Wire Mesh Fence Hot Dipped Galvanized Salt Spray Resistance
Recyclable Welded Wire Mesh Fence Hot Dipped Galvanized Salt Spray Resistance Recyclable Welded Wire Mesh Fence Hot Dipped Galvanized Salt Spray Resistance Recyclable Welded Wire Mesh Fence Hot Dipped Galvanized Salt Spray Resistance Recyclable Welded Wire Mesh Fence Hot Dipped Galvanized Salt Spray Resistance Recyclable Welded Wire Mesh Fence Hot Dipped Galvanized Salt Spray Resistance

Large Image :  Recyclable Welded Wire Mesh Fence Hot Dipped Galvanized Salt Spray Resistance

Product Details:
Place of Origin: China
Brand Name: TC
Certification: CE / ISO9001
Model Number: TCBWF
Payment & Shipping Terms:
Minimum Order Quantity: 30 Meters
Price: USD 25-70 / Meters
Packaging Details: Bubble Pad + Wood Tray
Delivery Time: 10-15 Working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000000 Square Meter / Square Meters per Year
Detailed Product Description
Name: Barbed Wire Fence Material: Galvanized Or Pvc Coated
Hole Style: Blinds Holes Or Round Holes Application: Highway, Subway
Barbed Wire Features: Great Protection Against Corrosion And Oxidation Color: White, Blue, Green Or Customer's Request
High Light:

barbed wire mesh

,

welded wire fence

,

Recyclable Welded Wire Mesh Fence

Recyclable Welded Wire Mesh Fence Hot Dipped Galvanized Salt Spray Resistance





1. Product Description

Barbed wire fence can be divided into two types according to the production characteristics. One is a welded mesh fence and the other is a chain link fence. Both types of fences have a wide range of applications in terms of protection.



The welded wire mesh guardrail is made by welding the wire, cold-galvanized iron wire or hot-dip galvanized iron wire after welding, and then processed by bending, spraying or PVC.



It has the characteristics of corrosion resistance, beautiful appearance and effective protection. The chain link fence is a wire of various materials, including PVC wire, hot and cold galvanized wire, etc. Ticked up. It has the characteristics of strong impact resistance, beautiful appearance, corrosion resistance and good protection.



Recyclable Welded Wire Mesh Fence Hot Dipped Galvanized Salt Spray Resistance 0



2. Barbed wire fence form



(1) Middle road guardrail



A kind of guardrail net installed in the center of the road is mainly used to separate the vehicles in the ascending and descending order. Prevent vehicles from entering the reverse lane and prevent non-motor vehicles and pedestrians from traversing and crossing the road at will, so as to ensure good traffic order and prevent accidents. This guardrail is mostly made of piers or columns made of cement, metal or cement, and metal.


(2) Isolation pier guardrail



The fence net between the motor vehicle lane and the non-motor vehicle lane on one side or both sides of the road is mainly used to isolate non-motor vehicles and motor vehicles. It plays a role in all walks of life, does not interfere with each other, and drives in sequence. This guardrail is mostly made of cement or metal material and has a height of about 600 mm.


(3) Pedestrian guardrail



A road fence network located outside the sidewalk at the intersection and between the sidewalk and the roadway. It is mainly used to prevent pedestrians from arbitrarily slanting and crossing in the intersections and on the roadway. The second is to prevent the vehicles from escaping into obstacles and entering the sidewalk. It plays a role in making traffic order good and protecting pedestrian safety.



Product Name

Barbed wire fence

Color

White, Blue, Green Or Customer's Request

Size

As Customers' Requirement

Feature

Easily Assembled, Excellent Weather Resistance, Salt Spray Resistance

MOQ

30 Meter / Meters

Usage

Road,highway,Public Place,Community,School

Service

Traffic noise, equipment noise attenuation, industrial noise barriers, highways and highways are the most used types of sound barriers.



Recyclable Welded Wire Mesh Fence Hot Dipped Galvanized Salt Spray Resistance 1



3. Production specification



1. The mesh (the mesh is woven, galvanized low carbon steel wire, surface spray)



Wire                         : galvanized wire with a wire diameter of 3.2mm
Four-sided file          : 1.5 cold-rolled sheet forming

                                  (upper and lower files: 28mm × 12mm × 1.5mm; side file: 30mm × 16mm × 1.5mm; mid-range 28mm × 12mm × 1.5mm)
Pitch                        : 4.15*4.15
Cylinder                   : 60*1.2 diameter pipe

                                 (Note: large chassis 168mm*135mm steel castings, small chassis 42mm*42mm aluminum parts)
Surface treatment   : spray
Color                       : wood gray mainly

                                 (can also be customized according to customer requirements.
Mesh width              : 1.61 m
Mesh height             : 2.2 meters, 2.52 meters, 2.8 meters, 3 meters

                                  (can also be customized according to customer requirements, minimum 2.2 meters or more)
Specifications & dimensions of the mesh: (Net height × net width)
                                  A: 2200mm × 1610mm B: 2520mm × 1610mm
                                  C: 2800mm × 1610mm D: 3000mm × 1610mm
Metal mesh column  : Each two nets is a column (that is, a length of 3.22 meters is a column, the mesh is fixed by screws,

                                    the base and the ground are fixed by expansion screws. It is convenient to disassemble)

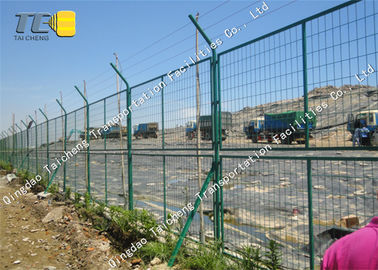

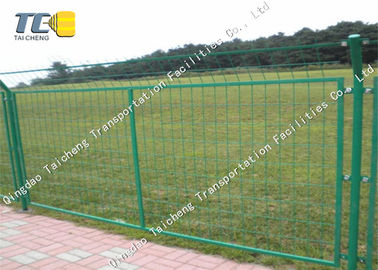

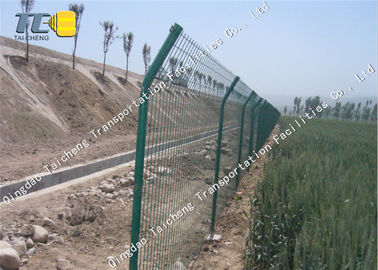

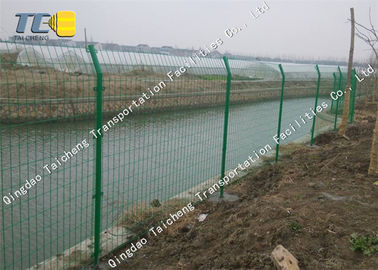

4. Our installation

Recyclable Welded Wire Mesh Fence Hot Dipped Galvanized Salt Spray Resistance 2

Recyclable Welded Wire Mesh Fence Hot Dipped Galvanized Salt Spray Resistance 0

Recyclable Welded Wire Mesh Fence Hot Dipped Galvanized Salt Spray Resistance 4

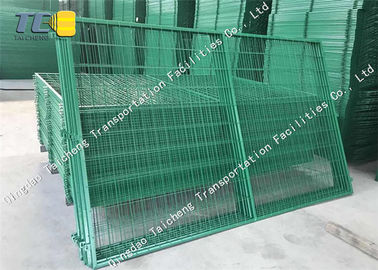

5. packing



Recyclable Welded Wire Mesh Fence Hot Dipped Galvanized Salt Spray Resistance 5

6. FAQ

1. You are manufacture factory or trading company?

  We are manufacture factory. you are warmly welcomed to vist us per your convenience.



2. Does your company can produce other specification

  Yes, we can manufacture the fence according to your request .



3. What about the delivery times?

  About 15 days after getting your prepayment.it will be according to your quatity.

  Customized order may need longer time.



4. What is your payment terms?

   T/T , L/C at sight, cash.



5. Did you check all the product before leaving your factory?

   Yes. All production line have adequate quality control.



7. Other products

Recyclable Welded Wire Mesh Fence Hot Dipped Galvanized Salt Spray Resistance 6
