Qingdao TaiCheng transportation facilities Co.,Ltd.
Home ProductsHighway Noise Barrier

Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers

China Qingdao TaiCheng transportation facilities Co.,Ltd. certification
China Qingdao TaiCheng transportation facilities Co.,Ltd. certification
I am very grateful to the staff of Taicheng for their cooperation. Our guardrail installation is very beautiful, and my customers like it too. Next time I will buy back.

—— Le Thao

I'm Online Chat Now

Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers

Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers
Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers

Large Image :  Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers

Product Details:
Place of Origin: China
Brand Name: TC
Certification: CE / ISO9001
Model Number: TCNB
Payment & Shipping Terms:
Minimum Order Quantity: 30 Meters
Price: USD 25-70 / Meters
Packaging Details: Bubble Pad + Wood Tray
Delivery Time: 10-15 Working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000000 Square Meter / Square Meters per Year
Detailed Product Description
Name: Perforated Construction Noise Barrier Fence Material: Aluminium Sheet, Metal
Hole Style: Blinds Holes Or Round Holes Panel Thickness: At Your Requst
Application: Railway, Subway Noise Reduction: Above 30dB
Panel Style: Arc-Shaped, Curves Panel Length: 2000mm
Panel Width: 5000mm Feature: Waterproof, Soundproof, Corrosion Resistance
High Light:

highway sound barrier

,

railway noise barriers

Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers



1. Product Description

Noise barrier​ ,Sound insulation sound barrier, mainly used for sound insulation and noise reduction of roads, highways, elevated composite roads and other noise sources. It is divided into a purely sound-reflecting reflective sound barrier, and a composite sound barrier combined with sound absorption and sound insulation. The latter is a more effective sound insulation method. Refers to wall structures placed on the side of railways and highways to mitigate the effects of driving noise on nearby residents. Sound insulation walls are also known as sound barriers.



Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers 0



2. Noise Barrier Advantages

• Good sound absorbing property

• Painted various colors, and can enrich sound barrier landscape

• It can be washed like glass

• Fireproofing, weather resistance

• Corrosion resistance

• Convenient installation

• Size and shape can be customized

• Light weight, recyclable

• Long service life, etc



Product Name

Noise Barrier

Color

White, Blue, Green Or Customer's Request

Size

As Customers' Requirement

Feature

Easily Assembled, Excellent Weather Resistance, Salt Spray Resistance

MOQ

50 Meter / Meters

Usage

Road,highway,Public Place,Community,School

Service

Traffic noise, equipment noise attenuation, industrial noise barriers, highways and highways are the most used types of sound barriers.



Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers 1



3. Production Process



Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers 2

4. Specifications

Common specifications for noise barrier:


Screen size                                                       : 500mm*2000mm, 500mm*3000mm


Thickness of galvanized sheet of screen body : 0.6mm, 0.7mm, 0.8mm, 1.0mm, 1.2mm


Total thickness of the screen body                    : 80mm, 100mm,


Column                                                              : H-shaped steel 100mm*100mm*6*8mm, 125mm*125mm*7*10mm
Height                                                                : 3m, 3.5m, 4m, 4.5m, 5m, 5.5m, 6m
Style                                                                   : upright, upper with chamfer
Color                                                                  : dark gray, light gray
Surface treatment                                              : galvanized + spray
Stable                                                                 : increase the diagonal support
The main components of the sound barrier       :  Foundations, columns, screens, fixtures, seals, and some also include top                                                                                      structures.

Sound barrier screen body                                : galvanized sheet, back sheet, keel, glass wool, DuPont film, front punching                                                                                     rate of 25% or more; sound barrier column: H-shaped steel, flanged chassis,                                                                                 diagonal bracing, inner rib plate, outer rib plate;

5. Our installation

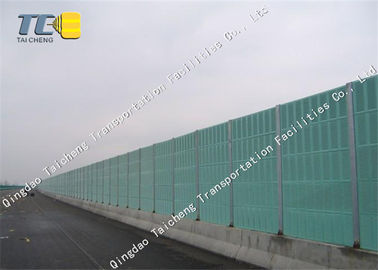

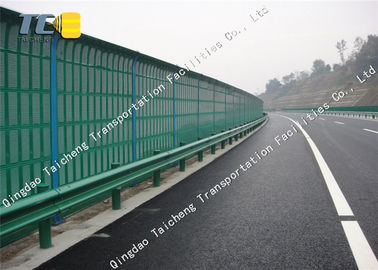

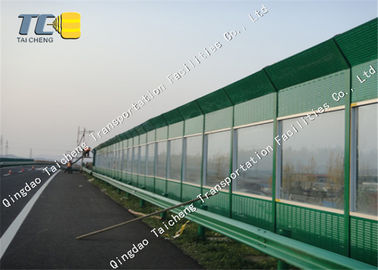

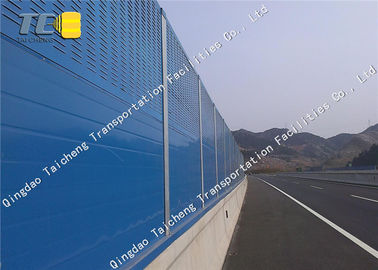

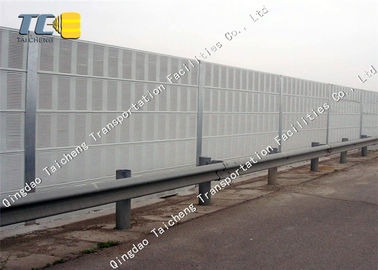

Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers 3Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers 4Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers 5Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers 6



6. packing



Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers 7

7. FAQ

1. You are manufacture factory or trading company?

  We are manufacture factory. you are warmly welcomed to vist us per your convenience.



2. Does your company can produce other specification

  Yes, we can manufacture the fence according to your request .



3. What about the delivery times?

  About 15 days after getting your prepayment.it will be according to your quatity.

  Customized order may need longer time.



4. What is your payment terms?

   T/T , L/C at sight, cash.



5. Did you check all the product before leaving your factory?

   Yes. All production line have adequate quality control.



8. Other products

Highway Security Freeway Sound Barrier Sound Proof Railway Noise Barriers 8
