ISO9001 RMS Approved Safety Barriers , Wave Metal Highway Barriers On Roads

China Qingdao TaiCheng transportation facilities Co.,Ltd. certification
China Qingdao TaiCheng transportation facilities Co.,Ltd. certification
I am very grateful to the staff of Taicheng for their cooperation. Our guardrail installation is very beautiful, and my customers like it too. Next time I will buy back.

—— Le Thao

I'm Online Chat Now

ISO9001 RMS Approved Safety Barriers , Wave Metal Highway Barriers On Roads

ISO9001 RMS Approved Safety Barriers , Wave Metal Highway Barriers On Roads
ISO9001 RMS Approved Safety Barriers , Wave Metal Highway Barriers On Roads ISO9001 RMS Approved Safety Barriers , Wave Metal Highway Barriers On Roads ISO9001 RMS Approved Safety Barriers , Wave Metal Highway Barriers On Roads ISO9001 RMS Approved Safety Barriers , Wave Metal Highway Barriers On Roads ISO9001 RMS Approved Safety Barriers , Wave Metal Highway Barriers On Roads

Large Image :  ISO9001 RMS Approved Safety Barriers , Wave Metal Highway Barriers On Roads

Product Details:
Place of Origin: China
Brand Name: TC
Certification: CE / ISO9001
Model Number: TCWG
Payment & Shipping Terms:
Minimum Order Quantity: 100 Meters
Price: USD 30-70 / Meters
Packaging Details: Pallet
Delivery Time: 10-15 Working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100000 Meters Per Month
Detailed Product Description
Name: Metal Traffic Barrier Material: Stainless Steel
Production Line Capacity: 150,000 Tons Per Year Life Time: More Than 10 Years
Actual Units Produced(Previous Year): 40,000 Tons Feature: Rustproof
High Light:

w metal beam crash barrier

,

thrie beam crash barrier

,

Wave Metal Highway Barriers

ISO9001 RMS Approved Safety Barriers , Wave Metal Highway Barriers On Roads



1. Product Description



The wave guardrail is a combined corrugated steel movable guardrail with a split at the center of the road. The guardrail is composed of two corrugated steel guardrails and two columns fixedly sandwiched between the two. The two columns are fixedly clamped. Between two corrugated steel guardrails.



When the road is in normal operation, the guardrail can be easily inserted into the pre-installed insertion and extraction holes by the plugging and unloading column to provide isolation and protection. At the same time, it is matched with the guardrail belt on the outer side of the road, neat and uniform, and beautifully matched.



When the vehicle collides with it, the corrugated steel guardrail board has good crashworthiness and energy absorption, and it is not easy to be destroyed, and at the same time it can protect the vehicle and the passengers.



ISO9001 RMS Approved Safety Barriers , Wave Metal Highway Barriers On Roads 0



2. Product Information



Product Name

W Wave Beam Guardrail

Color

White, Blue, Green Or Customer's Request

Size

As Customers' Requirement

Feature

Easily Assembled, Excellent Weather Resistance, Salt Spray Resistance

MOQ

50 Meter / Meters

Usage

Road,highway,Public Place,Community,School

Service

OEM,ODM And Design Are Welcome

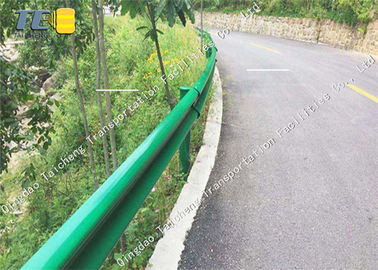

3. Surface treatment

The surface treatment of the corrugated beam guardrail can be divided into the following types:



1. Hot-dip galvanizing--Hot galvanizing is the most common surface treatment method for high-speed highways.



2. Cold galvanized spray - cold galvanized spray is generally used in rural or mountain roads, this surface treatment is lower than the cost of hot galvanizing, the appearance is also more beautiful.



3. Hot-dip galvanizing spray - hot-dip galvanized spray is the best of the three corrosion resistance, this surface treatment is mostly used in a relatively environmentally harsh environment, widely used in China's Heilongjiang, northern Liaoning.



ISO9001 RMS Approved Safety Barriers , Wave Metal Highway Barriers On Roads 1



4. Specifications And Weight



(1) Fence plate: plate length × plate width × wave height × plate thickness



A, double wave guardrail : 4320 × 310 × 85 × 3.0   theoretical weight 49.16 Kg

                                          4320×310×85×4.0         theoretical weight 65.55 Kg

B, three wave guardrail   : 4320 × 506 × 85 × 4.0   theoretical weight 102 kg



(2) Column :( Diameter × wall thickness × length )



                                         : 114×4.5 × length            theoretical weight 12.16 Kg

                                           140×4.5 × length            theoretical weight 15.06 Kg



     Column Length           : 1m, 1.2m, 1.25m, 1.55m, 1.85m, 1.95m, 2m, 2.15m, etc.



(3) Anti-blocking block     : 196×178×200×3.0/4.0 Each weight is about 2.5kg, which is used together with the nine-hole plate.



(4) Column cap                : 114mmx100mm Each weighing about 0.5kg



                                         :140mmX150mm each weighing about 0.6kg



(5) Bracket                        : 300 × 70 × 4mm / 4.5mm Note: Matching with ten-hole plate, each weighing about 0.8kg.



(6) End                             : General split side (R160), and central belt (R250) two models, commonly used thickness of 3mm.



                                           Special types of other models can be arranged at any time according to customer requirements.



(7) Beam gasket (square gasket)



                                         Material: Q235, high quality steel plate.

                                         Specifications: 76 × 44 × 4 weighs about 0.08kg

                                         It is used for brackets (anti-blocks) and guardrails, and for connecting screw holes.



(8) Bolt                            : M16×170 (150) The column is connected with the anti-blocking block and the bracket;

                                          M16×42 (40) anti-blocking block, bracket and board connection;

                                          M16×35 (32.5) board is connected to the board;

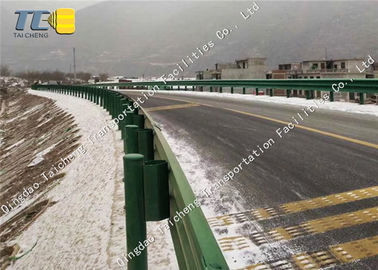

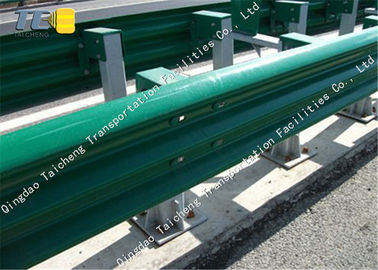

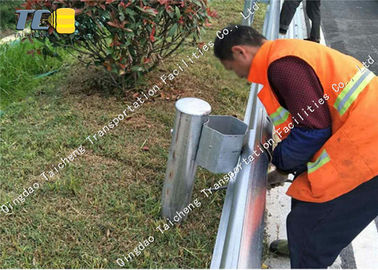

5. Our installation



ISO9001 RMS Approved Safety Barriers , Wave Metal Highway Barriers On Roads 2

ISO9001 RMS Approved Safety Barriers , Wave Metal Highway Barriers On Roads 3ISO9001 RMS Approved Safety Barriers , Wave Metal Highway Barriers On Roads 4





6. packing



ISO9001 RMS Approved Safety Barriers , Wave Metal Highway Barriers On Roads 5

7. FAQ

1. You are manufacture factory or trading company?

  We are manufacture factory. you are warmly welcomed to vist us per your convenience.



2. Does your company can produce other specification

  Yes, we can manufacture the fence according to your request .



3. What about the delivery times?

  About 15 days after getting your prepayment.it will be according to your quatity.

  Customized order may need longer time.



4. What is your payment terms?

   T/T , L/C at sight, cash.



5. Did you check all the product before leaving your factory?

   Yes. All production line have adequate quality control.
