Outdoor Pneumatic Bollards Polished Stainless Steel Road Safety Equipment

Outdoor Pneumatic Bollards Polished Stainless Steel Road Safety Equipment
Outdoor Pneumatic Bollards Polished Stainless Steel Road Safety Equipment Outdoor Pneumatic Bollards Polished Stainless Steel Road Safety Equipment

Large Image :  Outdoor Pneumatic Bollards Polished Stainless Steel Road Safety Equipment

Product Details:
Place of Origin: China
Brand Name: TC
Certification: CE/ISO9001
Model Number: TC-303B
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCS
Price: USD 150-1500 / Piece
Packaging Details: Wooden Case / Carton
Delivery Time: 5-8 Working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Piece / Pieces per Month
Detailed Product Description
Name: Rising Bollard Material: Stainless Steel
Color: Red Or Optional Application: Outdoor
Usage: Road Traffic Safety Surface Treatment: Hot Dipped Galvanized
Work Temperature: -40--70℃ Height: 600mm
Type: Automatic Voltage: 220 Vac 50/60Hz
High Light:

remote control bollards

,

electric security bollards

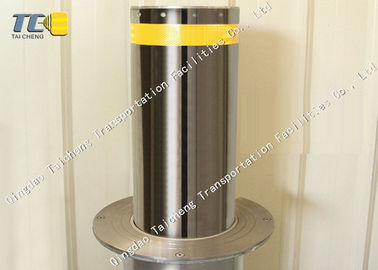

Outdoor Pneumatic Bollards Polished Stainless Steel Road Safety Equipment



1. Product Description



Pneumatic automatic bollard is usually installed in the vehicle entrance / exit and control point. Commands are sent by remote control or other control system to make bollard automatically back to ground level to release barrier-free passing. This is suitable for custom, port, wharf, high-class estate, pedestrian street, government building, prison, airport, military base and other places in need of control.



Outdoor Pneumatic Bollards Polished Stainless Steel Road Safety Equipment 0

Outdoor Pneumatic Bollards Polished Stainless Steel Road Safety Equipment 1



2. Specifications



1) Suitable for custom, port, wharf, highclass estate, Pedestrian Street, government building, prison, airport, military base and other places in need of access control.



2) High-strength anti-collision, prevent illegal vehicle intrusion and provide necessary protection.



3) Good looking, enhance the beauty



Model

KVS-APB-168.900.5-4

Material

304 Stainless Steel

Diameter

168mm(6.61'')

Height

900mm(35.43'')

Thickness

5mm(0.197'')

Weight

150Kg(330.69lb)

Surface Treatment

Brushed & Polished

Reflective Adhesive Strip

50mm(1.97'')

Rising and Lowring Speed

2s to 3s

Voltage

220 Vac 50/60Hz

Impact Resistance

30.000 J

Breakout Resistance

150.000 J

Protection Class

IP67

Operating Tempereture

-40 °C +70 °C(-104°F-158°F)

Warranty

12 months



Main Features

1) High responding speed(Can be shortened to 2 seconds)
2) Up/down condition can be changed during the running process to avoid accidents
3) Gas pressure,environmental protection
4) Safe voltage,high security
5) Unified control,assembled power and control unites,easy maintenance

3. Control Cabine



Outdoor Pneumatic Bollards Polished Stainless Steel Road Safety Equipment 2

Control Cabinet



Model Number

KVS-APB-CT01

KVS-APB-CT02

Voltage

AC220V

AC220V

Dimension

820*770*560

1060*850*950

Max Control Distance

600m

600m

Max Bollards

3~4

6~7







4. Workshop



Outdoor Pneumatic Bollards Polished Stainless Steel Road Safety Equipment 3

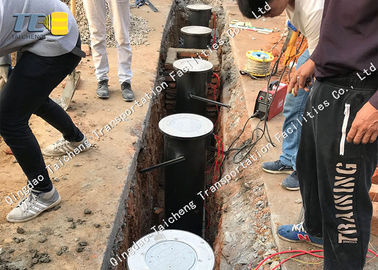

5.Our Projects

Outdoor Pneumatic Bollards Polished Stainless Steel Road Safety Equipment 4



6. Shipping

Outdoor Pneumatic Bollards Polished Stainless Steel Road Safety Equipment 5



1. Normally, we offer UPS/DHL/FEEDX/TNT express with door to door service, if the G.W. of goods are are less than 50Kg. You just need to pay some custom clearance charge for receiving the items at your specific address. The shipping date is about 3-5 days.


2. If G.W. are over 80Kg, we will check if air shipment is more economical than express. Shipping by air you need to go to airport to take items. If you are not very familiar with these works, you may need a broker to help you deal with the custom clearance and goods transportation. The air shipping is about 2-7 days.


3. If you make a large order, we suggest that you ship by sea. We have our own forwarder for the shipment service. Please contact with us without any hesitation if you have large orders. C.Bollard is raised by a gas spring.



7. Related Products

Outdoor Pneumatic Bollards Polished Stainless Steel Road Safety Equipment 6



8. Our services







A

High quality goods with competitive price and fast delivery time.

B

Technical help with the solutions and questions.

C

OEM design,customized drawing for the guardrail and pipe.

D

Different standard products we would offer for different country and regions.

E

Different color and surface treatment,cold galvanized+spray, hot galvanized,hot galvanized+spray.

9. FAQ





Q1

Are you a trader or factory?

R1

Yes,our factory is in Shandong,China.

Q2

How can i get a sample if i want to test the quality?

R2

Yes,we would offer the samples.If you want to test the quality,please let me know and i would arrange you the samples.

Q3

How long is your delivery time?

R3

We would offer you a best delivery time.we have a big factory,and our output would be more than 100 thousand tons per month.

Q4

What is your payment terms?

R4

We accept T/T, L/C.
