Stainless Steel Rising Security Bollards 220 Vac Max Control For Road Safety

China Qingdao TaiCheng transportation facilities Co.,Ltd. certification
China Qingdao TaiCheng transportation facilities Co.,Ltd. certification
I am very grateful to the staff of Taicheng for their cooperation. Our guardrail installation is very beautiful, and my customers like it too. Next time I will buy back.

—— Le Thao

I'm Online Chat Now

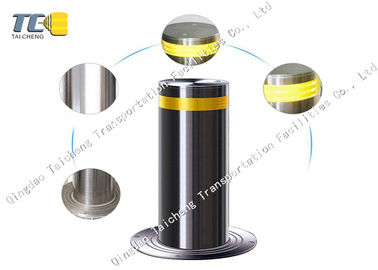

Stainless Steel Rising Security Bollards 220 Vac Max Control For Road Safety

Stainless Steel Rising Security Bollards 220 Vac Max Control For Road Safety
Stainless Steel Rising Security Bollards 220 Vac Max Control For Road Safety Stainless Steel Rising Security Bollards 220 Vac Max Control For Road Safety Stainless Steel Rising Security Bollards 220 Vac Max Control For Road Safety Stainless Steel Rising Security Bollards 220 Vac Max Control For Road Safety

Large Image :  Stainless Steel Rising Security Bollards 220 Vac Max Control For Road Safety

Product Details:
Place of Origin: China
Brand Name: TC
Certification: CE/ISO9001
Model Number: TC-303B
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCS
Price: USD 150-1500 / Piece
Packaging Details: Wooden Case / Carton
Delivery Time: 5-8 Working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Piece / Pieces per Month
Detailed Product Description
Name: Rising Bollard Material: Stainless Steel
Usage: Road Traffic Safety Height: 600mm
Type: Automatic Diameter: 219/273mm
Thickness: 5mm Voltage: 220 Vac 50/60Hz
Impact Resistance:: 30.000 J
High Light:

remote control bollards

,

electric security bollards

Stainless Steel Rising Security Bollards 220 Vac Max Control For Road Safety



1. Product Description



Pneumatic automatic bollard is usually installed in the vehicle entrance / exit and control point. Commands are sent by remote control or other control system to make bollard automatically back to ground level to release barrier-free passing. This is suitable for custom, port, wharf, high-class estate, pedestrian street, government building, prison, airport, military base and other places in need of control.



Stainless Steel Rising Security Bollards 220 Vac Max Control For Road Safety 0
Stainless Steel Rising Security Bollards 220 Vac Max Control For Road Safety 1



2. Specifications



1) Suitable for custom, port, wharf, highclass estate, Pedestrian Street, government building, prison, airport, military base and other places in need of access control.



2) High-strength anti-collision, prevent illegal vehicle intrusion and provide necessary protection.



3) Good looking, enhance the beauty



Model
KVS-APB-168.900.5-4
Material
304 Stainless Steel
Diameter
168mm(6.61'')
Height
900mm(35.43'')
Thickness
5mm(0.197'')
Weight
150Kg(330.69lb)
Surface Treatment
Brushed & Polished
Reflective Adhesive Strip
50mm(1.97'')
Rising and Lowring Speed
2s to 3s
Voltage
220 Vac 50/60Hz
Impact Resistance
30.000 J
Breakout Resistance
150.000 J
Protection Class
IP67
Operating Tempereture
-40 °C +70 °C(-104°F-158°F)
Warranty
12 months



Main Features

1) High responding speed(Can be shortened to 2 seconds)
2) Up/down condition can be changed during the running process to avoid accidents
3) Gas pressure,environmental protection
4) Safe voltage,high security
5) Unified control,assembled power and control unites,easy maintenance

3. Control Cabine



Stainless Steel Rising Security Bollards 220 Vac Max Control For Road Safety 2

Control Cabinet



Model Number
KVS-APB-CT01
KVS-APB-CT02
Voltage
AC220V
AC220V
Dimension
820*770*560
1060*850*950
Max Control Distance
600m

600m

Max Bollards
3~4
6~7





4. Packing

Stainless Steel Rising Security Bollards 220 Vac Max Control For Road Safety 3

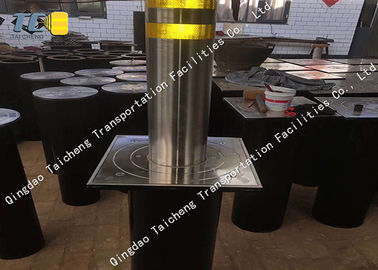

5. Workshop



Stainless Steel Rising Security Bollards 220 Vac Max Control For Road Safety 4

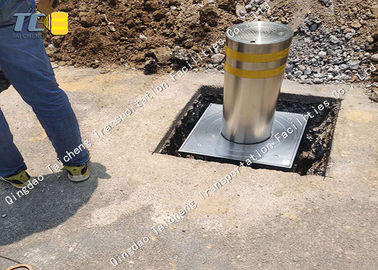

6. Our Projects

Stainless Steel Rising Security Bollards 220 Vac Max Control For Road Safety 5



7. Shipping

Stainless Steel Rising Security Bollards 220 Vac Max Control For Road Safety 6



1. Normally, we offer UPS/DHL/FEEDX/TNT express with door to door service, if the G.W. of goods are are less than 50Kg. You just need to pay some custom clearance charge for receiving the items at your specific address. The shipping date is about 3-5 days.


2. If G.W. are over 80Kg, we will check if air shipment is more economical than express. Shipping by air you need to go to airport to take items. If you are not very familiar with these works, you may need a broker to help you deal with the custom clearance and goods transportation. The air shipping is about 2-7 days.


3. If you make a large order, we suggest that you ship by sea. We have our own forwarder for the shipment service. Please contact with us without any hesitation if you have large orders. C.Bollard is raised by a gas spring.



8. Related Products

Stainless Steel Rising Security Bollards 220 Vac Max Control For Road Safety 7



9. Our service



A

High quality goods with competitive price and fast delivery time.

B

Technical help with the solutions and questions.

C

OEM design,customized drawing for the guardrail and pipe.

D

Different standard products we would offer for different country and regions.

E

Different color and surface treatment,cold galvanized+spray, hot galvanized,hot galvanized+spray.





10. FAQ

Q1

Are you a trader or factory?

R1

Yes,our factory is in Shandong,China.

Q2

How can i get a sample if i want to test the quality?

R2

Yes,we would offer the samples.If you want to test the quality,please let me know and i would arrange you the samples.

Q3

How long is your delivery time?

R3

We would offer you a best delivery time.we have a big factory,and our output would be more than 100 thousand tons per month.

Q4

What is your payment terms?

R4

We accept T/T, L/C.
