High Strength Pneumatic Bollards Anti Corrosion , Automatic Bollard Systems

China Qingdao TaiCheng transportation facilities Co.,Ltd. certification
China Qingdao TaiCheng transportation facilities Co.,Ltd. certification
I am very grateful to the staff of Taicheng for their cooperation. Our guardrail installation is very beautiful, and my customers like it too. Next time I will buy back.

—— Le Thao

I'm Online Chat Now

High Strength Pneumatic Bollards Anti Corrosion , Automatic Bollard Systems

High Strength Pneumatic Bollards Anti Corrosion , Automatic Bollard Systems
High Strength Pneumatic Bollards Anti Corrosion , Automatic Bollard Systems High Strength Pneumatic Bollards Anti Corrosion , Automatic Bollard Systems High Strength Pneumatic Bollards Anti Corrosion , Automatic Bollard Systems High Strength Pneumatic Bollards Anti Corrosion , Automatic Bollard Systems High Strength Pneumatic Bollards Anti Corrosion , Automatic Bollard Systems

Large Image :  High Strength Pneumatic Bollards Anti Corrosion , Automatic Bollard Systems

Product Details:
Place of Origin: China
Brand Name: TC
Certification: CE/ISO9001
Model Number: TC-303B
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCS
Price: USD 150-1500 / Piece
Packaging Details: Wooden Case / Carton
Delivery Time: 5-8 Working day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 Piece / Pieces per Month
Detailed Product Description
Name: Rising Bollard Material: Stainless Steel
Color: Red Or Optional Application: Outdoor
Usage: Road Traffic Safety Surface Treatment: Hot Dipped Galvanized
Work Temperature: -40--70℃ Height: 600mm
Diameter: 219/273mm Voltage: 220 Vac 50/60Hz
High Light:

automatic rising bollards

,

remote control bollards

High Strength Pneumatic Bollards Anti Corrosion , Automatic Bollard Systems



1. Product Description

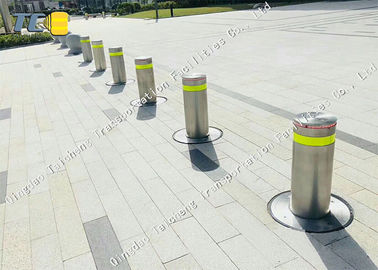

Pneumatic automatic bollard is usually installed in the vehicle entrance / exit and control point. Commands are sent by remote control or other control system to make bollard automatically back to ground level to release barrier-free passing. This is suitable for custom, port, wharf, high-class estate, pedestrian street, government building, prison, airport, military base and other places in need of control.



High Strength Pneumatic Bollards Anti Corrosion , Automatic Bollard Systems 0

High Strength Pneumatic Bollards Anti Corrosion , Automatic Bollard Systems 1



2. Specifications



1) Suitable for custom, port, wharf, highclass estate, Pedestrian Street, government building, prison, airport, military base and other places in need of access control.



2) High-strength anti-collision, prevent illegal vehicle intrusion and provide necessary protection.



3) Good looking, enhance the beauty



Model

KVS-APB-168.900.5-4

Material

304 Stainless Steel

Diameter

168mm(6.61'')

Height

900mm(35.43'')

Thickness

5mm(0.197'')

Weight

150Kg(330.69lb)

Surface Treatment

Brushed & Polished

Reflective Adhesive Strip

50mm(1.97'')

Rising and Lowring Speed

2s to 3s

Voltage

220 Vac 50/60Hz

Impact Resistance

30.000 J

Breakout Resistance

150.000 J

Protection Class

IP67

Operating Tempereture

-40 °C +70 °C(-104°F-158°F)

Warranty

12 months



Main Features

1) High responding speed(Can be shortened to 2 seconds)
2) Up/down condition can be changed during the running process to avoid accidents
3) Gas pressure,environmental protection
4) Safe voltage,high security
5) Unified control,assembled power and control unites,easy maintenance



3. Control Cabine



High Strength Pneumatic Bollards Anti Corrosion , Automatic Bollard Systems 2

Control Cabinet



Model Number

KVS-APB-CT01

KVS-APB-CT02

Voltage

AC220V

AC220V

Dimension

820*770*560

1060*850*950

Max Control Distance

600m

600m

Max Bollards

3~4

6~7





4. Packing

High Strength Pneumatic Bollards Anti Corrosion , Automatic Bollard Systems 3



5. Workshop



High Strength Pneumatic Bollards Anti Corrosion , Automatic Bollard Systems 4

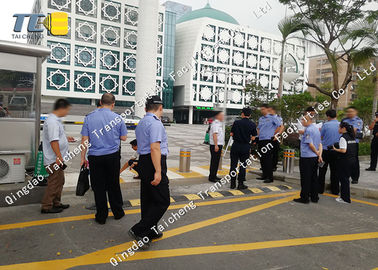

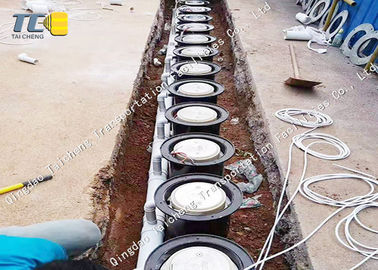

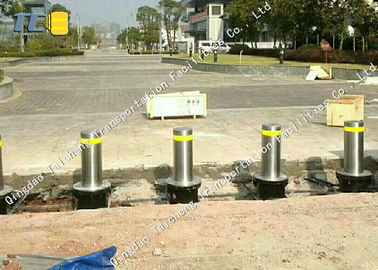

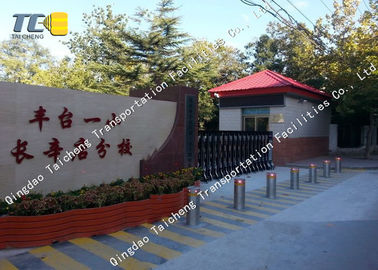

6. Our Projects

High Strength Pneumatic Bollards Anti Corrosion , Automatic Bollard Systems 5



7. Shipping

High Strength Pneumatic Bollards Anti Corrosion , Automatic Bollard Systems 6



1. Normally, we offer UPS/DHL/FEEDX/TNT express with door to door service, if the G.W. of goods are are less than 50Kg. You just need to pay some custom clearance charge for receiving the items at your specific address. The shipping date is about 3-5 days.


2. If G.W. are over 80Kg, we will check if air shipment is more economical than express. Shipping by air you need to go to airport to take items. If you are not very familiar with these works, you may need a broker to help you deal with the custom clearance and goods transportation. The air shipping is about 2-7 days.


3. If you make a large order, we suggest that you ship by sea. We have our own forwarder for the shipment service. Please contact with us without any hesitation if you have large orders. C.Bollard is raised by a gas spring.



8. Related Products

High Strength Pneumatic Bollards Anti Corrosion , Automatic Bollard Systems 7



9. Our services





A

High quality goods with competitive price and fast delivery time.

B

Technical help with the solutions and questions.

C

OEM design,customized drawing for the guardrail and pipe.

D

Different standard products we would offer for different country and regions.

E

Different color and surface treatment,cold galvanized+spray, hot galvanized,hot galvanized+spray.

10. FAQ

Q: How long is your delivery time?

A: Generally it is 25-40 days,it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes,we provide samples.For extra.



Q: What is your terms of payment ?

A: 30% T/T in advance,balance before shippment.
