| Brand Name: | TaiCheng |
| Model Number: | RBD245 |
| MOQ: | 100 meters / Unit |
| Price: | USD 245 Each Meters |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100 Meters Per 25 Days Or More Less Time |
Corrosion Resistant Highway Roller Barrier System With EN1317 DIN Standard
1. Company Situation
Qingdao Taicheng Transportation Facilities Co., Ltd. is located in Jinkou Town, Jimo District, Qingdao City, Shandong Province. It is a professional rotating guardrail manufacturer with advanced technology and strong strength, which integrates development, production and sales.
Our advantages lie in independent production, factory direct operation, exquisite workmanship, precise size, professional technicians, high quality production level is the cornerstone of our development.
2. Product Introduction
|
Surface Treatment |
Hot dipped galvanized |
|
Zinc coating |
85um(600g/m2) |
|
The thickness |
3 mm,4 mm,6 mm or according to customers’request |
|
The thickness of galvanized |
60-600um or according to customers’ request |
|
Base steel |
Steel Grade Q235B (equivalent to S235JR according to DIN EN 10025 and Gr. D according to ASTM A283M) |
|
Standards |
GB/T18226,JT/T281-1995,AASHTO,M-180,RAL-RG620,SPS98S or any other International Standards |
|
Certificate |
ISO 9001,Russian impacting test report |
|
Features |
High intensity,durable,anti-rusting,anti-corrosion |
|
Application |
Highway,bridge,curves and slopes,parking lots,road corners, dead end street etc. |

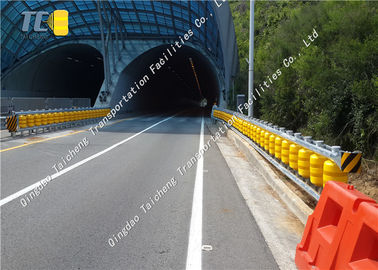

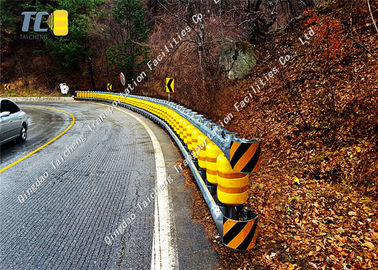

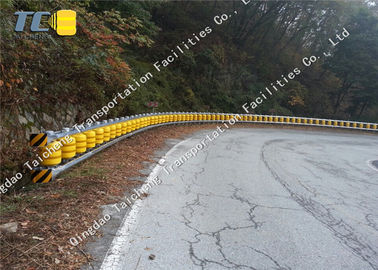

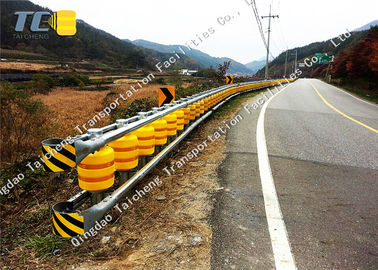

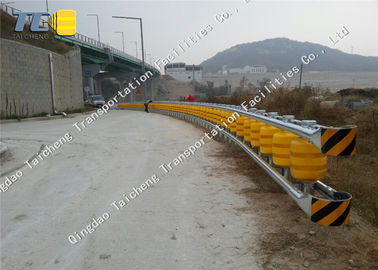

3. Product use
|
A |
Road central safety roller.the road central safety roller is to divide the car line and prevent safety driving from opposite impact |
|
B |
Road cross safety roller.the road cross safety roller is installed on the cross to prevent the cars from rushing to the greenbelt. |
|
C |
Safety roller for highway.it is very fast driving in the highway, and the safety roller is to protect the drivers&passengers from |
4. Product Parameters
|
No. |
Name |
Specifications(mm) |
Material |
|
1 |
Roller |
345*490/350*510(Customized) |
Polyurethane |
|
2 |
Post |
140*2000*4.5(Customized) |
Q235 |
|
3 |
PVC Tube |
160*500*6.5(Customized) |
PVC |
|
4 |
Beam |
100*80*4.0 |
Q235 |
|
5 |
Rolling Circle |
182×145×6.0 |
Polymer Ethylene |
|
6 |
End Socket |
1300×230×4.0 |
Q235 |
|
7 |
Post Cap |
145×145 |
Rubber |
|
8 |
Bolt |
M18*120 |
Q235 |
|
|
M18*180 |
Q235 |
|
|
|
M18*80 |
Q235 |
|
|
9 |
Nut |
M20 |
Q235 |
|
Item |
Specifications |
|
Apparent Density (KG/m³) |
≥125 |
|
Tensile Strength(MPa) |
≥1.15 |
|
Elongation(%) |
≥320 |
|
Compression Permanent Distortion (%) |
≥38 |
|
Resilience(%) |
≥72 |
5. Features of construction barrier:
1. Normal Size: 3200/3810/4000/4300/4320×306/310/312/380×80/82/83/85×2.75/3/4mm. Available in different sizes.
2. Profile: W-beam, Three-beam construction barrier.
3. Applicable Standards: JT/T281-1995(Corrugated Sheet Steel Beams For Expressway construction barrier - China), AASHTO M-180(Corrugated Sheet Steel Beams For construction barrier - USA), RAL-RG620 (German) or any other International Standards.
4. Surface Treatment: Hot dip galvanized or Power coated.
5. The Thickness of Galvanized (Double Sides): 100g/m2,300g/m2,600g/m2 or as per your request.
6. Features: Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security, environmental protection, etc.
7. Relevant Parts Required for construction barrier: post, spacer (C, U and Sigma types etc) and fasteners.
8. Other special specification as per client's requirement or drawings.
6. Packing and shipping
For the roller barrel,it would be packed with opp bag+woven bag,or opp bag+woven bag+carton.
And for the guardrail,it would be packed as tie,and also the same as post.Shipping by air or sea as request.
7. Our services
We are special in the corrugated beam highway guardrail and corrugated Steel Pipe for traffic and would offer you much supports.
1) High quality goods with competitive price and fast delivery time.
2) Technical help with the solutions and questions.
3) OEM design,customized drawing for the guardrail and pipe.
4) Different standard products we would offer for different country and regions.
5) Different color and surface treatment,cold galvanized+spray, hot galvanized,hot galvanized+spray.
8. FAQ
1. Are you a trader or factory?
Yes,our factory is in Shandong,China.
2. How can i get a sample if i want to test the quality?
Yes,we would offer the samples.If you want to test the quality,please let me know and i would arrange you the samples.
3. How long is your delivery time?
We would offer you a best delivery time.we have a big factory,and our output would be more than 100 thousand tons per month.
4. What is your payment terms?
We accept T/T, L/C.
