Product Details:
Payment & Shipping Terms:
|
| Name: | Roller Barrier, Safety Barricade, Removable Bollard, Car Parking Advertising Boom Gate Barrier | Roller Material: | EVA / PU / Polyurethane |
|---|---|---|---|
| Color: | Orange / Yellow / Red / Green | Metal Material: | Q235 Hot-Dip Galvanizing |
| Spacing: | 650/700/1000 Mm | Weight: | 7-15 Kgs, As Per Size Of The Product, 30kg |
| Feature: | Easily Assembled, High Intensity, Eco Friendly, Corrosion Resistant | Lifetime: | 10 Years |
| Product Name: | Road Rolling Barrier,Haghway Guardrail | Surface Treatment: | Hot Dipped Galvanized,Galvanized + Powder Coated |
| Packing: | Standard Export Package | ||
| High Light: | roller guardrail,road roller barrier,Anti Rusting Rolling Guardrail Barrier |
||
High Safety Rolling Guardrail Barrier Anti Rusting For Dancing And Singing
1. Company Situation
Qingdao Taicheng Transportation Facilities Co., Ltd. is located in Jinkou Town, Jimo District, Qingdao City, Shandong Province. It is a professional rotating guardrail manufacturer with advanced technology and strong strength, which integrates development, production and sales.
2. Product Introduction
|
Roller (royalty barrel) |
H240xφ350mm,H270xφ350 |
|
Post |
φ140x2200x4.5mm |
|
Cross beam |
100x80x4.0mm |
|
Connecting rack |
430x84x70x4.0mm |
|
U shape frame |
380x70x6.0mm |
|
Turning circle |
φ182xφ145x2.0mm |
|
Square buckle |
46x64x4.0mm |
|
Terminal |
1300x230x2.0mm |
|
Bolts&Nuts |
M20x60/120/140mm |
|
Post spacing |
700 mm or 1000 mm as request drawing |
|
Material |
EVA/Polyurethane for barrel,and Q235/Q345 for guardrail |
|
Operating temperature |
-60℃~70℃(-76℉~158℉) |
|
Anti-corrision coefficien |
3 times more than the ordinary guardrail |
|
Crash test |
the test result readh the SB.SBm-classic fence corrision level |
3. Product Parameters
|
No. |
Name |
Specifications(mm) |
Material |
|
1 |
Roller |
345*490/350*510(Customized) |
Polyurethane |
|
2 |
Post |
140*2000*4.5(Customized) |
Q235 |
|
3 |
PVC Tube |
160*500*6.5(Customized) |
PVC |
|
4 |
Beam |
100*80*4.0 |
Q235 |
|
5 |
Rolling Circle |
182×145×6.0 |
Polymer Ethylene |
|
6 |
End Socket |
1300×230×4.0 |
Q235 |
|
7 |
Post Cap |
145×145 |
Rubber |
|
8 |
Bolt |
M18*120 |
Q235 |
|
|
M18*180 |
Q235 |
|
|
|
M18*80 |
Q235 |
|
|
9 |
Nut |
M20 |
Q235 |
|
Item |
Specifications |
|
Apparent Density (KG/m³) |
≥125 |
|
Tensile Strength(MPa) |
≥1.15 |
|
Elongation(%) |
≥320 |
|
Compression Permanent Distortion (%) |
≥38 |
|
Resilience(%) |
≥72 |
4. Product use

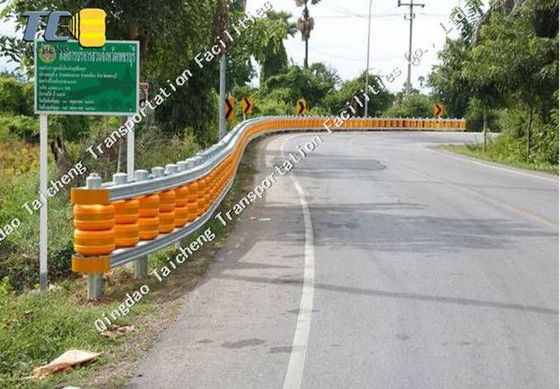

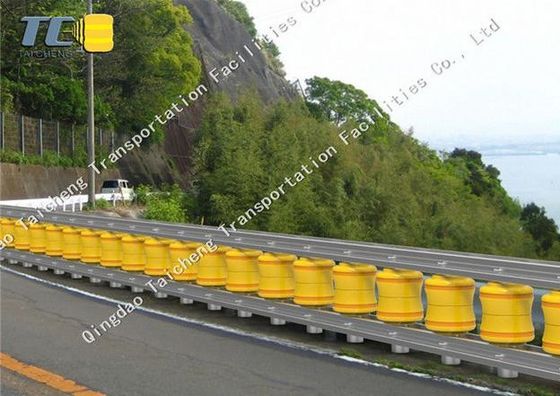

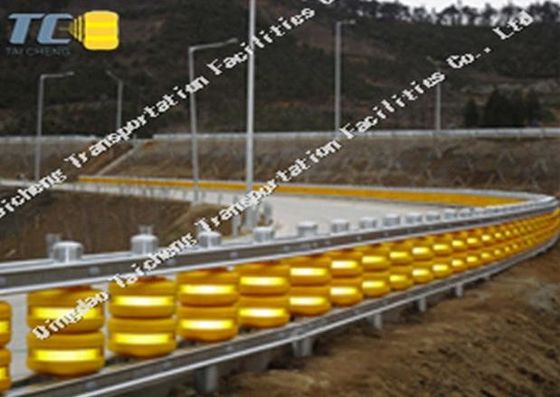

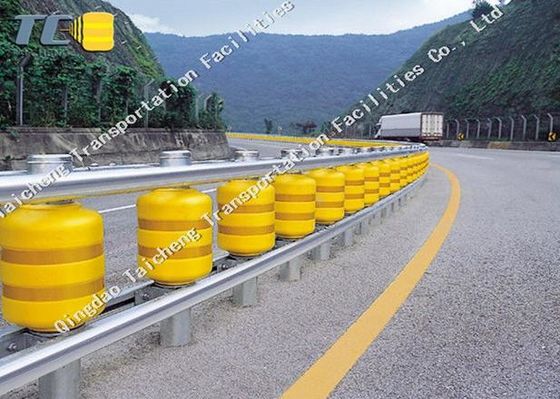

The rotating guardrails are especially suitable for installation and application in many accident areas such as tunnel entrances, central isolation belts, rapid turning zones, and complex intersections.
1) Road central safety roller.the road central safety roller is to divide the car line and prevent safety driving from opposite impact .
2) Road cross safety roller.the road cross safety roller is installed on the cross to prevent the cars from rushing to the greenbelt.
3) Safety roller for highway.it is very fast driving in the highway, and the safety roller is to protect the drivers&passengers from accident.
5. Henger's Products Advantage
1) The roller barrel is made of EVA and polyurethane composite material.
This kind of high strength EVA and polyurethane material is elastic and anti-impact and wear-resistant, which can avoid crashing of the roller barrel. when it is impacted, can effectively protect the guardrail and driver and passengers.
2) In addition to good anti-collision and wear-resisting performance.
It also has the advantages of anti-chemical corrosion, anti-ultraviolet aging, weathering resistance and so on. It is not easy to be damaged, and its appearance is exquisite and not faded. In the outdoor natural conditions, the service life is more than 10 years. Once a traffic accident occurs, when the car hits it, the energy of the collision is converted into the rotational energy by the way of rotation, so as to maintain the normal driving direction and speed of the car, so as to minimize the incidence of traffic accidents. To protect the safety of human life and provide a new road safety protection.
3) The roller barrel also has very strong resilience.
Even if they are seriously hit, they can be immediately restored to their original form.
6. Packing and shipping
For the roller barrel,it would be packed with opp bag+woven bag,or opp bag+woven bag+carton.
And for the guardrail,it would be packed as tie,and also the same as post.Shipping by air or sea as request.
7. Our services
We are special in the corrugated beam highway guardrail and corrugated Steel Pipe for traffic and would offer you much supports.
1) High quality goods with competitive price and fast delivery time.
2) Technical help with the solutions and questions.
3) OEM design,customized drawing for the guardrail and pipe.
4) Different standard products we would offer for different country and regions.
5) Different color and surface treatment,cold galvanized+spray, hot galvanized,hot galvanized+spray.
8. FAQ
1. Are you a trader or factory?
Yes,our factory is in Shandong,China.
2. How can i get a sample if i want to test the quality?
Yes,we would offer the samples.If you want to test the quality,please let me know and i would arrange you the samples.
3. How long is your delivery time?
We would offer you a best delivery time.we have a big factory,and our output would be more than 100 thousand tons per month.
4. What is your payment terms?
We accept T/T, L/C.
