Product Details:
Payment & Shipping Terms:
|
| Roller Material: | EVA / PU / Polyurethane | Metal Material: | Q235 Hot-dip Galvanizing |
|---|---|---|---|
| Roller Size: | Diameter 245/350 MM | Specification: | Beam 1/2/3/4/5PCS |
| Production Time: | With 25 Days | Color: | Orange / Yellow / Red / Green |
| Spacing: | 650/700/1000 MM | Lifetime: | 10 Years |
| Customed: | Allowed | Type: | Double Buckets Or Single Bucket,Single |
| Standard: | JT/T281-2007,JT/T281/AASHTO M180 | ||
| Highlight: | rolling barrier system,roller barrier system,M180 Roadside Crash Barriers |
||

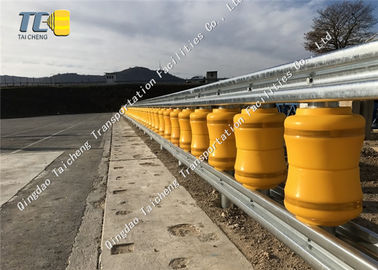

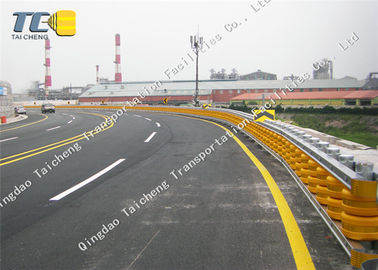

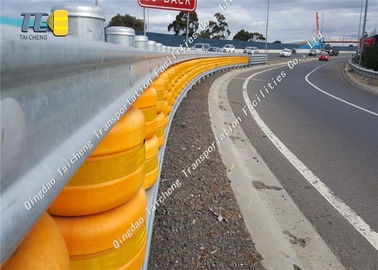

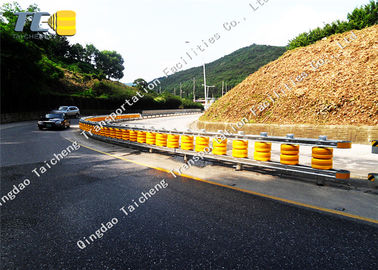

AASHTO M180 Yellow Roadside Crash Barriers Anti Crash Easily Assembled
1. Product Parameters
|
No. |
Name |
Specifications(mm) |
Material |
|
1 |
Roller |
345*490/350*510(Customized) |
Polyurethane |
|
2 |
Post |
140*2000*4.5(Customized) |
Q235 |
|
3 |
PVC Tube |
160*500*6.5(Customized) |
PVC |
|
4 |
Beam |
100*80*4.0 |
Q235 |
|
5 |
Rolling Circle |
182×145×6.0 |
Polymer Ethylene |
|
6 |
End Socket |
1300×230×4.0 |
Q235 |
|
7 |
Post Cap |
145×145 |
Rubber |
|
8 |
Bolt |
M18*120 |
Q235 |
|
|
M18*180 |
Q235 |
|
|
|
M18*80 |
Q235 |
|
|
9 |
Nut |
M20 |
Q235 |
|
Item |
Specifications |
|
Apparent Density (KG/m³) |
≥125 |
|
Tensile Strength(MPa) |
≥1.15 |
|
Elongation(%) |
≥320 |
|
Compression Permanent Distortion (%) |
≥38 |
|
Resilience(%) |
≥72 |

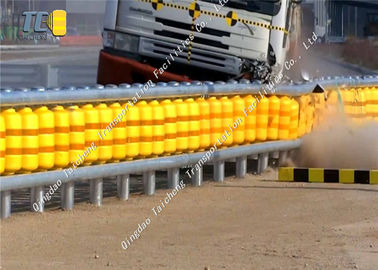

2. How safety roller barrier works?
1. The rotating barrel converts great shock from vehicle collision to rotational energy to absorb shock.
2. Upper and lower frames adjust tires of large and small vehicles to prevent the steering system function loss.
3. The three-dimensional structure of D-shaped frame and buffering bracket distribute and absorb the 2nd shock.
4. Props at an interval of 0.7 m increase bearing power to prevent accident vehicles from going over the guardrail and turning over into a dangerous area.
5. The product has a rotating barrel made of EVA with excellent shock absorption power, three-dimensional buffering frames and dense props supporting the frames.
3. Henger's Products Advantage
|
A .The roller barrel is made of EVA and polyurethane composite material. |
This kind of high strength EVA and polyurethane material is elastic and anti-impact and wear-resistant, which can avoid crashing of the roller barrel. when it is impacted, can effectively protect the guardrail and driver and passengers. |
|
B. In addition to good anti-collision and wear-resisting performance. |
It also has the advantages of anti-chemical corrosion, anti-ultraviolet aging, weathering resistance and so on. It is not easy to be damaged, and its appearance is exquisite and not faded. |
|
C.The roller barrel also has very strong resilience. |
Even if they are seriously hit, they can be immediately restored to their original form. |
|
D. The roller barrel has bright color, such as yellow, orange, green, etc., and has high bright reflection effect. |
It has eyeball capture function, which can arouse the attention of the driver and reduce the accident rate. Especially to ensure their safety at night and on rainy days. |
4. Our services
We are special in the corrugated beam highway guardrail and corrugated Steel Pipe for traffic and would offer you much supports.
1) High quality goods with competitive price and fast delivery time.
2) Technical help with the solutions and questions.
3) OEM design,customized drawing for the guardrail and pipe.
4) Different standard products we would offer for different country and regions.
5) Different color and surface treatment,cold galvanized+spray, hot galvanized,hot galvanized+spray.
5. Packing and shipping
For the roller barrel,it would be packed with opp bag+woven bag,or opp bag+woven bag+carton.
And for the guardrail,it would be packed as tie,and also the same as post.Shipping by air or sea as request.
