Product Details:
Payment & Shipping Terms:
|
| Roller Material: | EVA / PU / Polyurethane | Color: | Orange / Yellow / Red / Green |
|---|---|---|---|
| Metal Material: | Q235 Hot-dip Galvanizing | Usage: | Road Traffic Safety, For Dancing And Singing, ROAD SIDE, Curve Roads, Safety Roller Barrier Road Safety Barrier |
| Specification: | Beam 1/2/3/4/5PCS | Grade: | International Level 4 |
| Application: | Outdoor, Etc, Anticollision, Road Side, Private | Roller Size: | Diameter 245/350 MM |
| Weight: | 7-15 KGS, As Per Size Of The Product, 30KG | ||
| High Light: | roller road barrier,safety rolling barrier,Galvanized Rail Safety Roller Barrier |
||

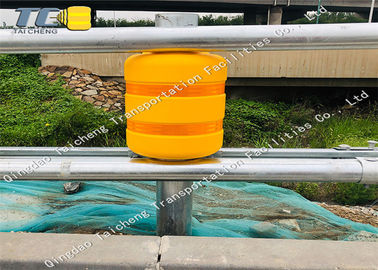

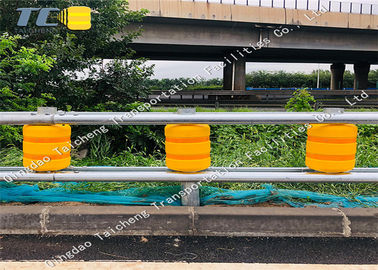

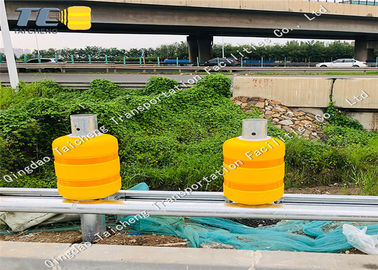

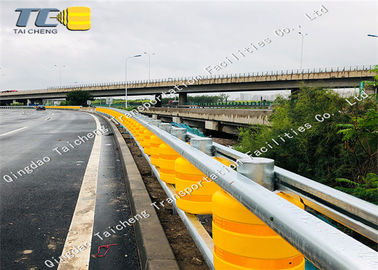

Galvanized Rail Safety Roller Barrier System Pu Rollers Yellow Rustproof
1. Company Situation
Qingdao Taicheng Transportation Facilities Co., Ltd. is located in Jinkou Town, Jimo District, Qingdao City, Shandong Province. It is a professional rotating guardrail manufacturer with advanced technology and strong strength, which integrates development, production and sales.
Our advantages lie in independent production, factory direct operation, exquisite workmanship, precise size, professional technicians, high quality production level is the cornerstone of our development.
2. Product Introduction
|
Basic Information |
name |
Highway Traffic Crash Barrier |
|
use |
road safety |
|
|
application |
outdoor |
|
|
specific information |
size |
4130*310*81*2.75 |
|
material |
Q235 |
|
|
surface treatment |
hot dip galvanized |
|
|
feature |
certificate |
ISO SGS BV CE |
|
standard |
AASHTO M180 |
|
|
feature |
anti-corrosion |
3. Product Parameters
|
No. |
Name |
Specifications(mm) |
Material |
|
1 |
Roller |
345*490/350*510(Customized) |
Polyurethane |
|
2 |
Post |
140*2000*4.5(Customized) |
Q235 |
|
3 |
PVC Tube |
160*500*6.5(Customized) |
PVC |
|
4 |
Beam |
100*80*4.0 |
Q235 |
|
5 |
Rolling Circle |
182×145×6.0 |
Polymer Ethylene |
|
6 |
End Socket |
1300×230×4.0 |
Q235 |
|
7 |
Post Cap |
145×145 |
Rubber |
|
8 |
Bolt |
M18*120 |
Q235 |
|
|
M18*180 |
Q235 |
|
|
|
M18*80 |
Q235 |
|
|
9 |
Nut |
M20 |
Q235 |
|
Item |
Specifications |
|
Apparent Density (KG/m³) |
≥125 |
|
Tensile Strength(MPa) |
≥1.15 |
|
Elongation(%) |
≥320 |
|
Compression Permanent Distortion (%) |
≥38 |
|
Resilience(%) |
≥72 |
4. Product use
|
Roller barrier Rolling system with "one upright four guardrails", can prevent the car through the fence, out of the driving lane effectively by strengthening the performance and installation of upright and guardrails. Rolling system use a rotating structure, install the roller barrier on the upright and make it rotate freely. This free rotation can disassemble the force of percussion from the car. And it will be adsorbed and reduced by the roller barrier effectively. So it can decrease the influence caused by traffic accidents. rolling system will create a new traffic protection way. |
5. Features of construction barrier:
1. Normal Size: 3200/3810/4000/4300/4320×306/310/312/380×80/82/83/85×2.75/3/4mm. Available in different sizes.
2. Profile: W-beam, Three-beam construction barrier.
3. Applicable Standards: JT/T281-1995(Corrugated Sheet Steel Beams For Expressway construction barrier - China), AASHTO M-180(Corrugated Sheet Steel Beams For construction barrier - USA), RAL-RG620 (German) or any other International Standards.
4. Surface Treatment: Hot dip galvanized or Power coated.
5. The Thickness of Galvanized (Double Sides): 100g/m2,300g/m2,600g/m2 or as per your request.
6. Features: Great corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security, environmental protection, etc.
7. Relevant Parts Required for construction barrier: post, spacer (C, U and Sigma types etc) and fasteners.
8. Other special specification as per client's requirement or drawings.
6. Packing and shipping
For the roller barrel,it would be packed with opp bag+woven bag,or opp bag+woven bag+carton.
And for the guardrail,it would be packed as tie,and also the same as post.Shipping by air or sea as request.
7. Our services
We are special in the corrugated beam highway guardrail and corrugated Steel Pipe for traffic and would offer you much supports.
1) High quality goods with competitive price and fast delivery time.
2) Technical help with the solutions and questions.
3) OEM design,customized drawing for the guardrail and pipe.
4) Different standard products we would offer for different country and regions.
5) Different color and surface treatment,cold galvanized+spray, hot galvanized,hot galvanized+spray.
8. FAQ
1. Are you a trader or factory?
Yes,our factory is in Shandong,China.
2. How can i get a sample if i want to test the quality?
Yes,we would offer the samples.If you want to test the quality,please let me know and i would arrange you the samples.
3. How long is your delivery time?
We would offer you a best delivery time.we have a big factory,and our output would be more than 100 thousand tons per month.
4. What is your payment terms?
We accept T/T, L/C.
